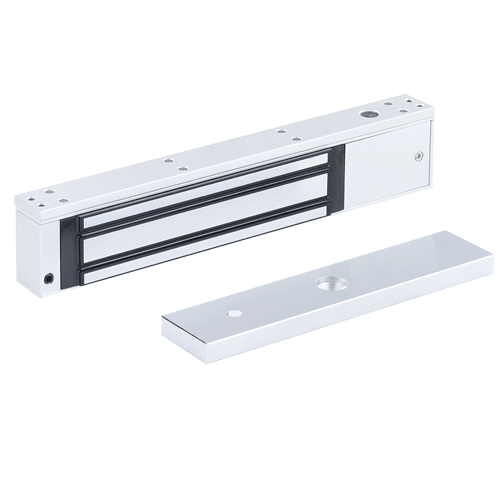

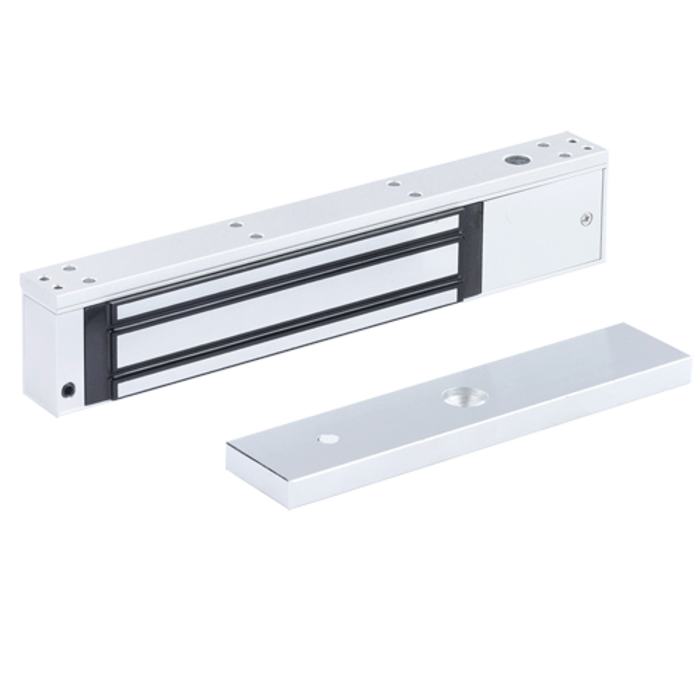

Electromagnetic Door Lock 280KG IP67 Electromagnetic lock for single doors

Electromagnetic Door Lock 280KG IP67 Electromagnetic lock for single doors

Electromagnetic lock for single doors
Fail-safe / Reverse (NC) functionality
Linear load resistance 280 kg
Surface mounting
Made of aluminum
Suitable for outdoor use IP67
Door type: Single door
Opening mode: Fail-safe / Reverse (NC)
Holding force: 280 kg
Power supply: DC 12 V / 520 mA max. or DC 24 V / 260 mA max.
Mounting surface
Protection: EXTERIOR IP67
Material: Aluminum
Operating temperature: -10 ºC ~ +55 ºC
Dimensions: Maglock: 250 (W) x 43 (H) x 28 (D) mm
Backplate: 180 (W) x 38 (H) x 13 (D) mm
