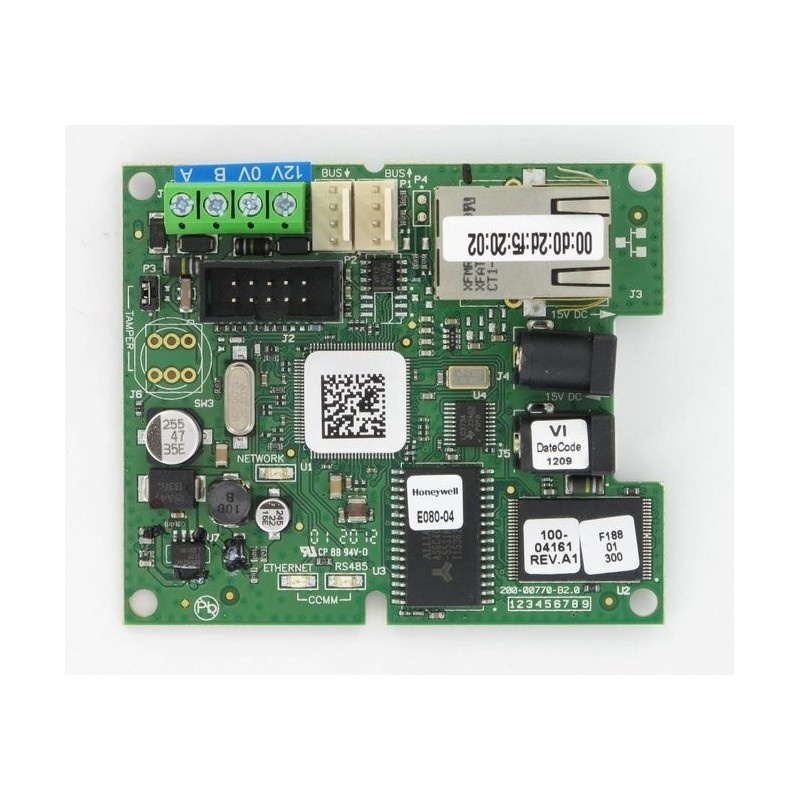

E080-10 - Galaxy IP module

Galaxy Ethernet Module  E080-08/10

The IP Module connects Galaxy Dimension alarm systems to the alarm receiving centre (ARC) for verification of the alarm source and cause, reducing false alarms and increasing system reliability. The IP Module allows users to remotely control their Galaxy system anytime, anywhere using their smartphone and the GX Remote Control App. The app also offers push notification functionality, allowing users to receive instant notifications on their smartphone when an alarm is activated within the Galaxy system.

E080-10 - Galaxy IP module for Dimension, Flex1, G2, G3 and XL
4 adhesive feet
Suitable for the Galaxy Dimension also for APP control and control room
Suitable for the Galaxy Flex version 1 also for APP control and control room
Suitable for the Galaxy G2 series for control room notification
Suitable for the Galaxy G3 series for control room notification

Properties:

Ethernet module for Galaxy Dimension
Can be used with MaxPro CLOUD 2.0 and the Galaxy App
Suitable for notification to the PAC
Not suitable for Flex 3 or Flex+ control panels

Technical data:

Power supply: 12 V DC
Standby consumption: 90 mA
Max. consumption: 135 mA
Connection: RJ-45
Communication speed: 100Base-T / 10Base-T
Operating temperature: 0…+40 °C
Maximum humidity: 25 to 55%
Dimensions: 67 x 79 x 16 mm
Weight: 50 g
Warranty: 2 years
Environmental class: II
Safety class according to EN 50131 and 50136: Grade 3
Certificate: 123036-14
