Galaxy Flex 3-20 with Mk7 control panel and IP module A083

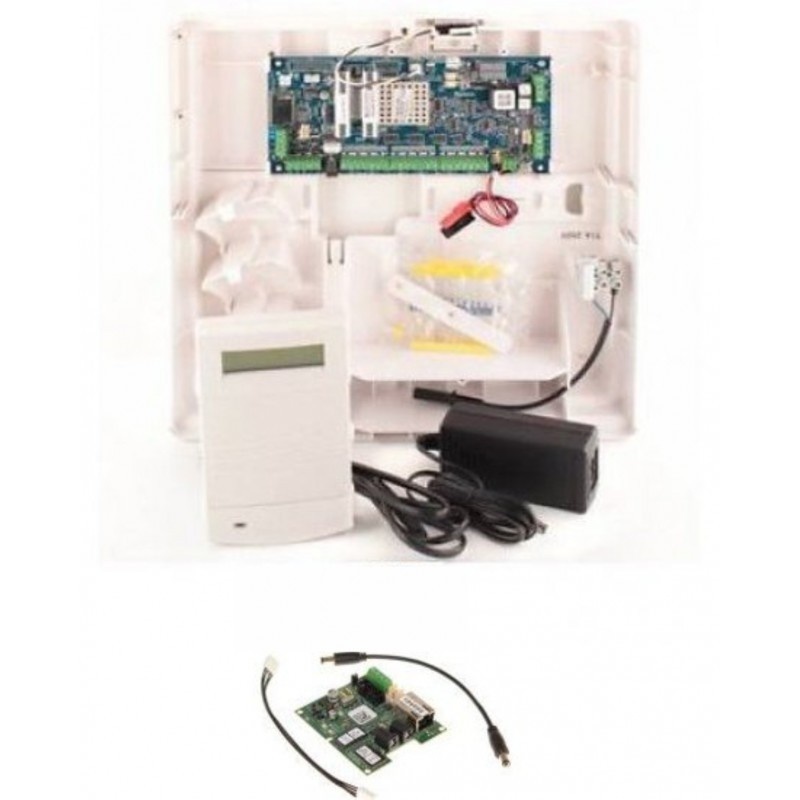

Galaxy Flex3-20 incl. MK7 LCD keypad, IP module and medium-sized plastic housing
Galaxy Flex3-20 incl. MK7 LCD keypad, IP module and medium-sized plastic housing works with LCD keypads, touchscreen keypad, handheld transmitters, proximity cards and can be controlled remotely via a mobile phone (in combination with Ethernet module)
access control and home automation functions
3 blocks with partial security and silent night switching option
12 zones onboard, expandable to 20 zones (all 20 also possible wirelessly)
3 outputs on the main board, expandable to 15 outputs
supports up to 4 keypads including TouchCenter
23+2 users
integrated power supply 1A (battery max. 10 Ah)
max. 8 wireless receivers / RF portals
max. 2 door controller modules (DCMs) for management of up to 4 doors
max. 4 bus proximity card readers (MAX)
1 RS-485 bus
high-speed bus for GSM/GPRS module and Ethernet module
built-in analog telephone dialer
2 weekly schedules
log up to 500 events
USB port for programming
Input voltage: 230 V (+10%, −15%) @ 50Hz
AUX output voltage: 13.8 V DC (10 V to 14.5 V)
Power supply: 1 A
Max. consumption: 140 mA
Output power (1 & 2): 400 mA
Output power (3 speakers): 8 to 32 Ohms
Max. battery capacity: 10 Ah
Max. battery size: 151 x 65 x 115 mm
Operating temperature: -10…+55 °C
Maximum humidity: 0 to 85%
Housing dimensions: 337 x 333 x 93 mm
Weight: 1.8 kg
Environmental class in accordance with EN50130-5: II
Safety class in accordance with EN 50131: Grade 2
Registration number / certificate: REQ 0481 / EN-ST-000110
