Home battery with installation Pylontech / Voltdeer SR5000 Pro - 5.12 kWh - Copy

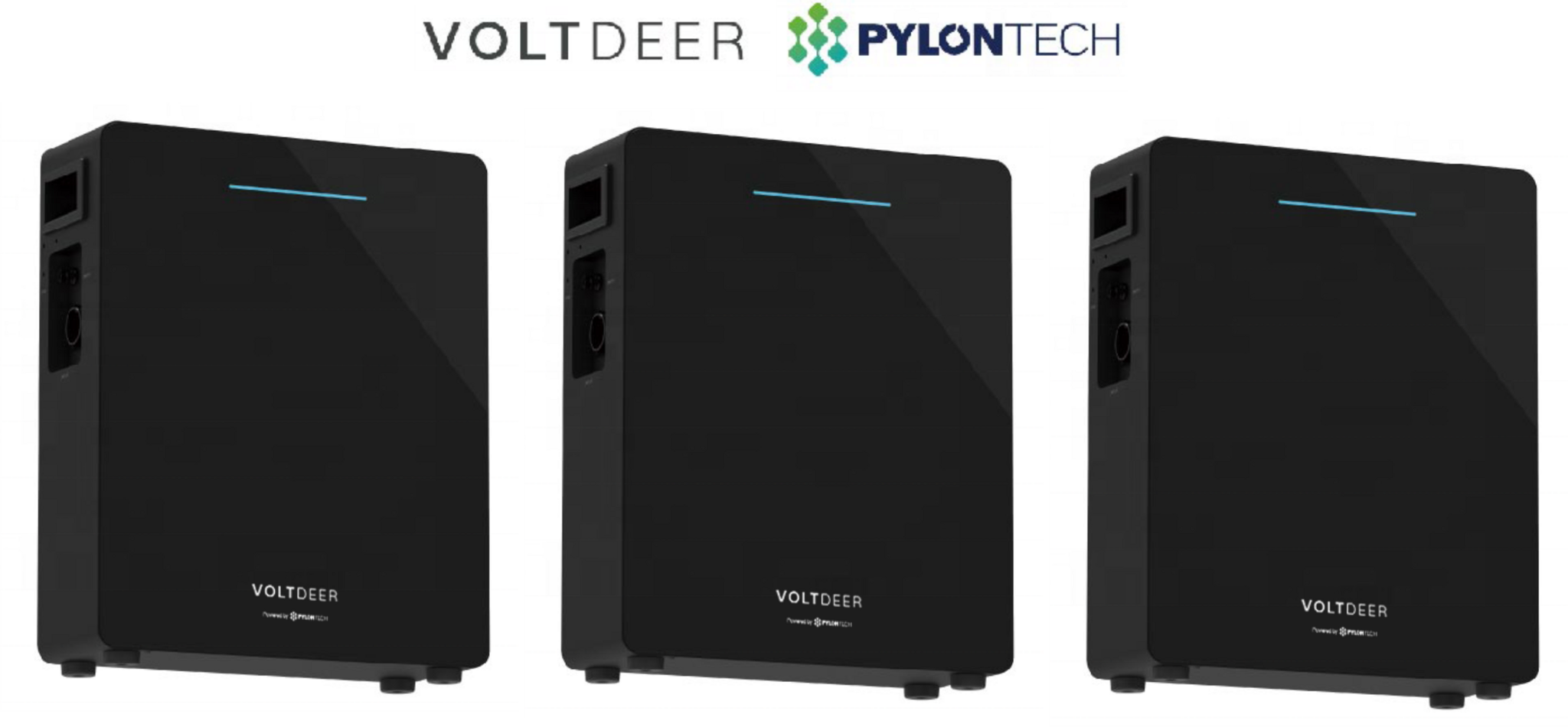

Pylontech / Voltdeer SR5000 Pro Home Battery – 5.12 kWh – total 15.36 kWh Home battery including installation 3 Fase

The Pylontech Voltdeer SR5000 Pro is a powerful, safe home battery featuring integrated aerosol fire suppression and a flame-retardant casing; it is specifically designed for homes and small businesses with existing solar panels. This battery is engineered to optimize your energy consumption and intelligently manage dynamic energy tariffs. With a storage capacity of 5.12 kWh and high-quality LiFePO₄ (Pylontech) cells, the SR5000 Pro offers a reliable, durable solution for daily use, peak shaving, and energy independence.

Key Installation Features

• PLEASE NOTE: Installation is currently scheduled for the week of December 1, 2026, due to lead times and scheduling.
• 3x Pylontech Voltdeer Pro with 5.12 kWh storage capacity total 15.36kWh
• Installation including HomeWizard P1 meter
• 3x HomeWizard Energy Socket connection for the home battery to provide additional data
• Smart energy management (AI-ready) for dynamic tariffs and future VPP integrations
• 3x 230V wall outlet on a dedicated circuit using surface-mounted wiring (max. 5-meter cable length; additional costs apply beyond this)
• 3x 230V 16A 30mA circuit installation in the fuse box (subject to available space; additional costs apply if extra space is required)

Options:

Scalable up to 10.5 kW (3-phase, 6 units in parallel) or 3.5 kW (1-phase, 2 units in parallel)
Integration with Home Assistant
HomeWizard Energy Display for an overview of energy management Installation conditions:

Installation in the Netherlands
Wi-Fi coverage available at both the battery location and the P1 meter location
3x 230V wall socket on a dedicated circuit using surface-mounted wiring (maximum cable length of 5 meters; additional charges apply if exceeded)
3x 230V 16A 30mA circuit to be installed in the meter cupboard (subject to available space; additional charges apply if an extra circuit cannot be accommodated)

An on-site quote is available for a fee of €75.00, which will be offset against the cost if the assignment proceeds.
