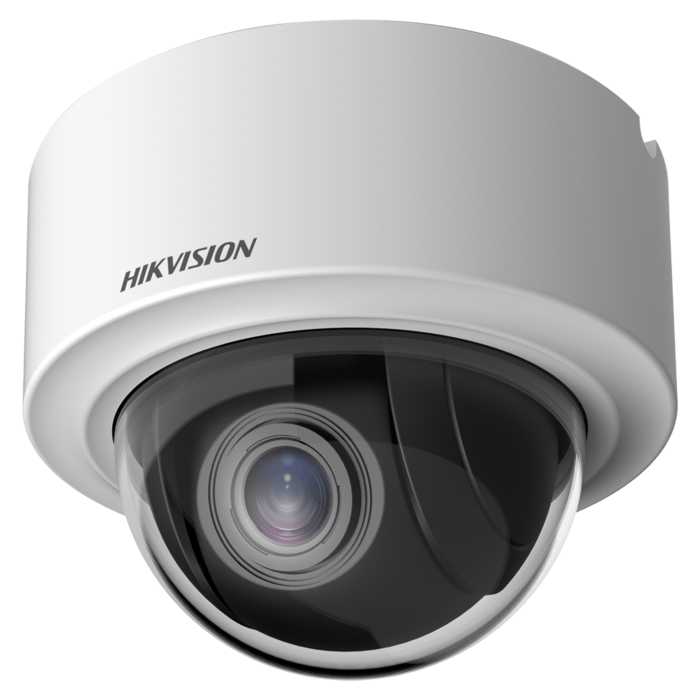

Hikvision DS-2DE3404W-DE(T5) speed dome Hikvision IP gemotoriseerde dome Resolutie 4 MP (2560x1440)

Hikvision DS-2DE3404W-DE(T5) speed dome Hikvision IP motorized dome Resolution 4 MP (2560x1440)

Image sensor 1/2.8“ Progressive Scan CMOS
Maximum resolution 4 Megapixel (2560x1440)
Main stream rate 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) [%VAR%]
Extra stream rate 25 fps (704x576, 640x480, 352x288)
Minimum illumination Colour: 0.005 Lux @ (F1.5, AGC ON)
Black and white: 0.001 Lux @ (F1.5, AGC ON)
Day / Night Removable mechanical ICR filter
Compression H.265+/ H.265 / H.264+/ H.264
Bitrate 32 Kbps ~ 16 Mbps
Lens Varifocal 2.8~12 mm (Optical Zoom 4X)
Viewing Angle (FOV) 93.8~31.7º (H), 50.9~17.9º (V), 110.3~36.1º (D)
Range performance TELE: 130.9 m (D), 51.9 m (O), 26.2 m (R), 13.1 m (I)
Image improvements WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking
ANR No
Motion Detection Yes
Pan/Tilt Range Horizontal: 0~350°, Vertical: 0°~90°
Manual speed Horizontal: 0.1~60 °/s, Vertical: 0.1~50 °/s
Speed between Presets Horizontal: 60 °/s, Vertical: 50 °/s
Internal memory MicroSD card slot up to 256 GB
Preset positions 300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan
Audio 1 input / 1 output
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio bit rate MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Alarms 1 input / 1 output
PTZ Control Through network access
1 x RS-485
Network interface Ethernet 10 / 100 BaseT
Remote access Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
Interoperability ONVIF, ISAPI, SDK, SDK
Power DC 12 V / 10 W max.
Temp. operation -30º C ~ +65º C
Material Aluminum alloy ADC12
Degree of protection IP66
Surge protection 4000 V
Dimensions (without bracket) Ø 140.7 mm x 1.2 07mm (H)
Weight (without bracket) 950 g

Mini PT IP Camera
1/2.8" Progressive Scan CMOS
4 Megapixel (2560x1440)
2.8~12 mm Varifocal lens
Color 0.005 Lux@(F1.5, AGC ON)
Compression H.265+/H.265/H.264+/H.264
RJ-45 10/100 BaseT
IR Cut
WDR (120 dB)
3D-DNR
Slot for MicroSD card up to 256 GB
Audio
Alarm
PoE IEEE802.3af
WEB, CMS, Smartphone and NVR interface
ONVIF Compatible
Weatherproof IP66
Surge protection 4000 V
