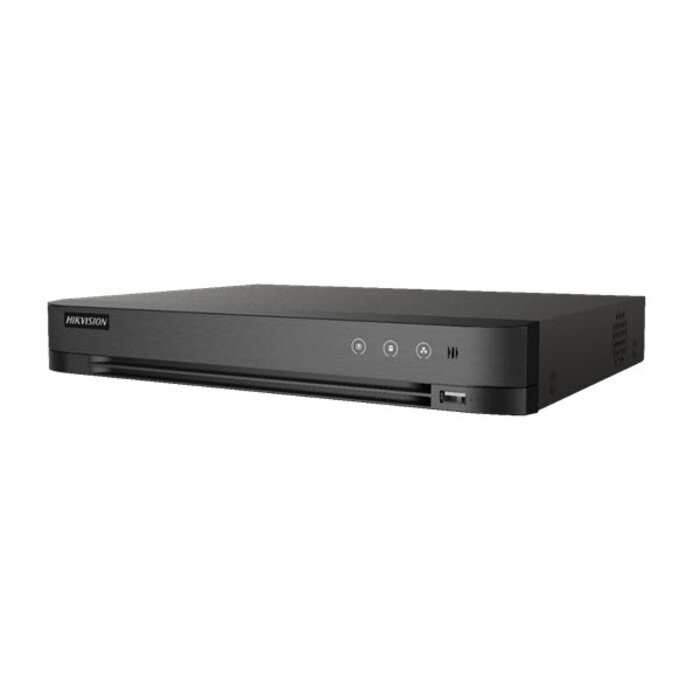

Hikvision recorder iDS-7208HQHI-M1/XL

Hikvision recorder iDS-7208HQHI-M1/XL 8 channels HD TVI/CVI/AHD/IP recorder

• 8 CH HDTVI / HDCVI / AHD / CVBS
• Up to 12 IP channels
• Maximum input resolution 3K
• AcuSense (4 Ch) | Face Recognition | 1 HDD
• Motion detection 2.0 on all channels

Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 8 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration 2CH additional IP: Up to 10 IP channels (6 Mpx), replacing all BNC channels

Enhanced IP Mode:
4CH additional IPs: Up to 12 IP (6 Mpx channels), replacing all BNC channels
Video outputs 1 HDMI Full HD and 1 VGA, simultaneous;
1 BNC CVBS
Display resolution HDMI: 1920x1080, 1280x1024, 1280x720
VGA: 1920x1080, 1280x1024, 1280x720
CVBS: 704x576 (PAL) / 704x480 (NTSC)
Audio inputs 1 Channel RCA
8 coaxial audio channels
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input
Audio Bit Rate 64 Kbps
Audio compression G.711u
Video compression Analog: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
IP: H.265+ / H.265 / H.264+ / H.264
Recording resolution With 1080p Lite mode not enabled:
3K Lite / 5 Mpx Lite / 4Mpx Lite / 1080p / 720p / WD1 / 4CIF / VGA / CIF

With 1080p Lite mode enabled:
3K Lite / 5Mpx Lite / 4Mpx Lite / 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF
Input resolution HDTVI: 3K (20 fps), 5Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps)
HDCVI: 5Mpx (20 fps), 4Mpx (25~30 fps),1080p (25~30 fps), 720p (25~30 fps)
AHD: 5Mpx (20 fps), 4Mpx (25~30 fps),1080p (25~30 fps), 720p (25~30 fps)
CVBS: PAL/NTSC
Main Stream coding 1080P Lite not enabled
Stream 3K: 3K Lite (12 FPS), 4 Mpx Lite/1080p lite (15 FPS); 720p/WD1/4CIF/VGA/CIF (20 FPS)
Stream of 5 Mpx: 5 Mpx Lite (12 FPS), 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (20 FPS)
Stream of 4 Mpx: 4 MP Lite/1080p (15 FPS), 720p/VGA/WD1/4CIF/CIF (25 FPS)
Stream of 1080p: 1080p/720p (15 FPS); VGA/WD1/4CIF/CIF (25 FPS) (P)
Stream of 720p: 720p/VGA/WD1/4CIF/CIF (25 FPS) (P)

1080P Lite enabled
3K Lite/4 Mpx Lite (12 FPS), 4 Mpx lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF (25 FPS) (P)
Extra Stream coding WD1 / 4CIF (12FPS) / CIF (25 FPS)
Video Bit Rate 32 Kbps at 6 Mbps
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms Does not have
Motion Detection Motion detection 2.0: Deep-learning based motion detection, can classify humans and vehicles upon motion detection.
Enabled by default on all analog channels.
* Motion detection and AcuSense cannot be enabled at the same time on the same device.
Intelligent functions Acusense: Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on:
Line Crossing, Area Intrusion.
Available in up to 4 analog video channels.
* Motion detection and AcuSense cannot be enabled at the same time on the same device.
Face Recognition Face image comparison, image search with faces up to 2 channels.
Up to 16 face libraries.
Recording method Manual, programmed, motion detection
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory 1 SATA HDD 3.5" of up to 10 TB (not included)
Communication 1xUSB 2.0 (front side), 1xUSB 2.0 (rear side) / 1xRJ45 (Ethernet) / 1xRS-485 half-duplex
Bandwidth 96 Mbps
Remote connections 64
Remote access Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
Power DC 12 V, 1.5A, ≤ 18 W
Operating temperature -10° ~ +55° C
Dimensions / Weight 45 (H) mm x 315 (W) mm x 242 (D) mm / ≤ 1.78 Kg
