Description

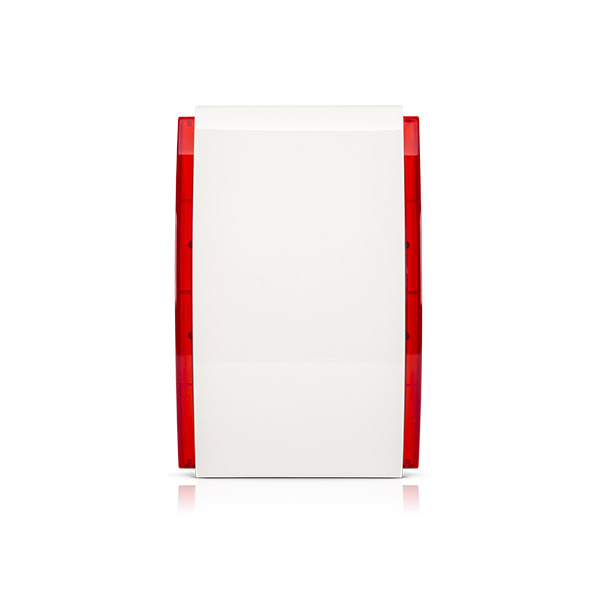

Indoor Siren and Strobe ASP-215R 868MHZ ABAX2

delivery ASP-215R / Indoor Siren and Strobe, incl. battery

Indoor Siren and Strobe ASP-215R 868MHZ ABAX2, includes ASP-215R / Indoor Siren and Strobe, battery included
Certified according to EN 50131 Grade 2 requirements
Two definable signaling methods
Optical signaling: LEDs
Acoustic signaling: piezoelectric transducer
3 tones to choose from
Wireless configuration and firmware update
Suitable for:
ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 signal repeater
ABAX system controllers (ACU-100, ACU-250, ACU-120, and ACU-270), INTEGRA 128-WRL alarm system, and ARU-100 signal repeater
Wireless range in open field:
In ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280
in ABAX: up to 500 m
Built-in temperature sensor (temperature measurement from -10°C to + 55°C)
Low power consumption and battery status monitoring
"ECO" option for extended battery life (ABAX 2 only)
Power supply: CR123A 3V battery
Tamper protection against opening the housing/removal from the mounting surface
Wireless communication range (in open field): ACU-100 up to 500 m

ACU-120 up to 500 m

ACU-220 up to 2000 m

ACU-250 up to 500 m

ACU-270 up to 500 m

ACU-280 up to 1600 m
Noise level (at 1 m distance): up to 105 dB
Battery: CR123A 3V
Battery life (standard operating mode): up to 2 years
Standby consumption: 70 µA
Max. consumption: 40 mA
Operating frequency band: 868.0 ÷ 868.6 MHz
Operating temperature: -10°C ... + 55°C
Temperature measurement range: -10°C ... + 55°C
Temperature measurement accuracy: ± 1°C
Max. humidity: 93±3%
Environmental class according to EN50130-5: II
Dimensions: 87 x 133 x 37 mm
Weight: 180 g
Standards complied with: EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-4, EN 50131-5-3
Security grade according to EN 50131: Grade 2
Certified: Yes
