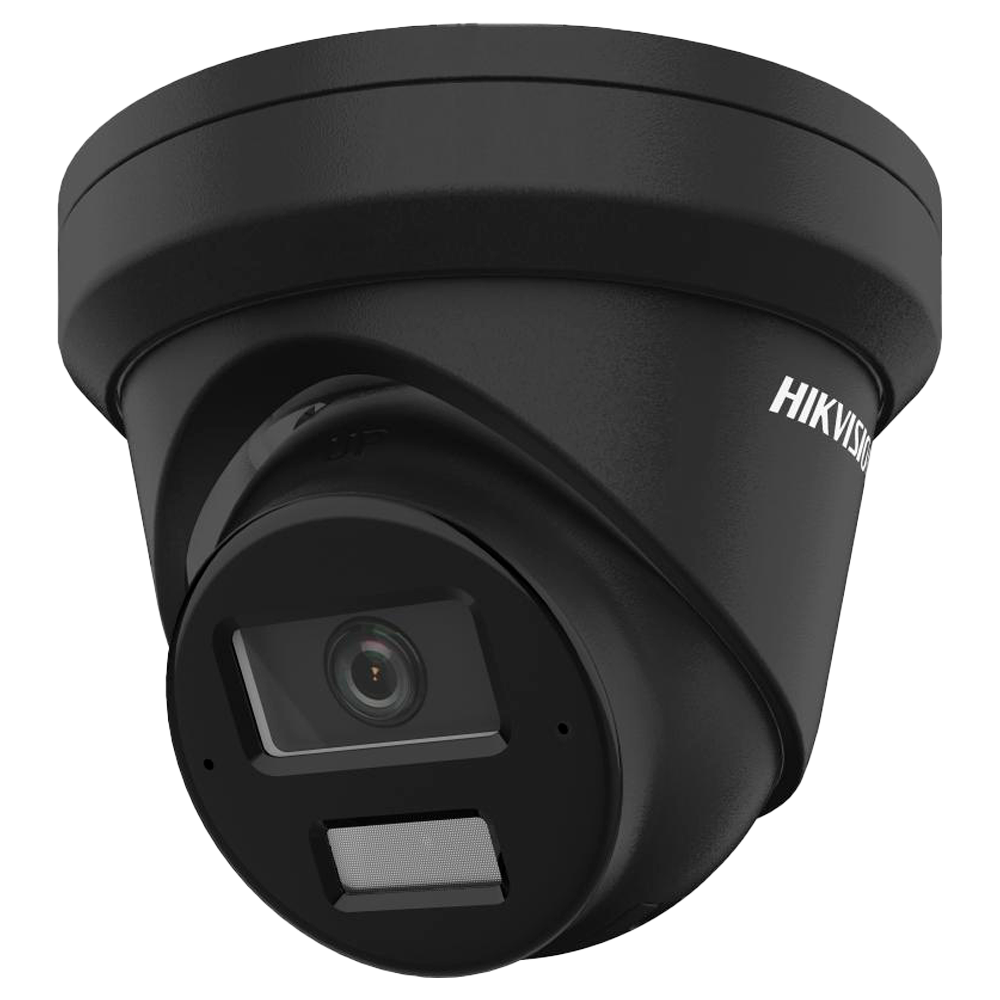

IP camera 8MP Hikvision DS-2CD2383G2-IU black 2.8mm

IP camera 8MP Hikvision DS-2CD2383G2-IU black 2.8mm

Image sensor 1/2.8" Progressive Scan CMOS
Maximum resolution 8 Megapixel (3840x2160)
Main Stream rate 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) [%VAR%]
Extra Stream rate 25 fps (1280x720, 640x480, 640×360)
Third stream rate 10 fps (1920×1080, 1280×720, 640x480, 640×360) [%VAR%]
* Third stream is supported under certain configurations
Compression H.265+ / H.264+ / H.265 / H.264
Bitrate 32 Kbps ~ 16 Mbps
Lens 2.8 mm
Viewing Angle (FOV) H: 108°, V: 59°, D: 127°
Range performance 84 m (D), 33 m (O), 16 m (R), 8 m (I)
Electronic Shutter 1/3~1/100.000 s
Minimum illumination Colour: 0.005 Lux @(F1.6, AGC ON)
0 Lux with IR range 30 m
Supplementary lighting Hybrid light:
IR Range 30 m
White light range 30 m
Day/Night Removable mechanical ICR filter
Image improvements WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking
ANR Yes
Motion Detection Motion detection 2.0 with human and vehicle classification applied in motion detection.

* Motion detection and AcuSense cannot be enabled at the same time on the same device.
Intelligent functions AcuSense
DeepLearning based technology for human and vehicle classification with false alarm reduction applied on:
Line Crossing, Area Intrusion

* Motion detection and AcuSense cannot be enabled at the same time on the same device.
Internal memory MicroSD card slot up to 512 GB
Audio Integrated dual array microphone
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Ambient noise filtering Yes
Network interface Ethernet 10 / 100 BaseT
Remote access Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
Interoperability ONVIF (Profiles S and G), ISAPI
Power DC 12 V / 660 mA / 8 W max.
PoE IEEE802.3af
Degree of protection Weatherproof IP67
Material Metallic
Temp. operation -30º C ~ +60º C
Dimensions Ø 127.3 mm x 96.3 mm (H)
Base dimensions Ø base 127.3 mm / Ø between bolts 112.4 mm / 3 bolts
Weight 515 g
Colour Black
