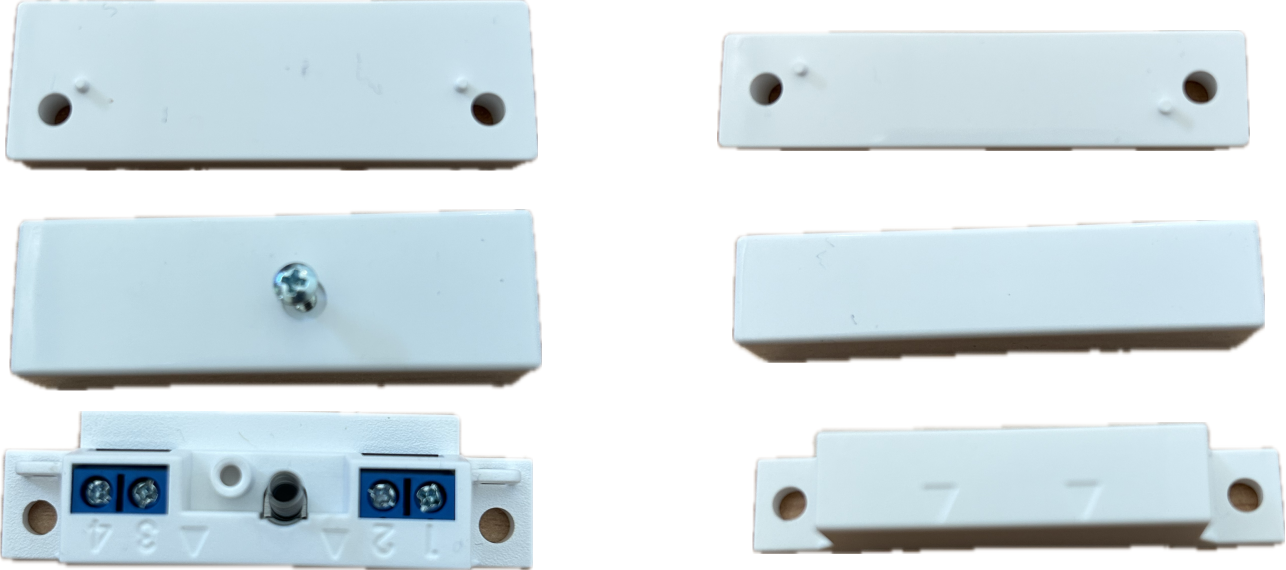

Magnetic contact surface-mounted with built-in 1K resistors type MC4401K1K for Honeywell Galaxy alarm systems

Magnetic contact surface-mounted with built-in 1K resistors type MC4401K1K for the Galaxy Flex and Galaxy Dimension alarm systems for easy mounting

Can also be used to place multiple of these magnetic contacts in series by connecting.

Between the alarm contact connection 1 and 2 is 1x 1K resistor and between connection 2 and 3 is the sabotage contact with 1x 1K resistor.

Surface-mounted magnetic contact PVC with screw connection
4x mounting screws included.
NC
With 2x 1K built-in resistors.
by only 1K resistor over alarm contact.
Operating distance approximately 37mm
Dimensions contact: 65x20x15mm
Dimensions magnet: 65x15x14.5mm
Colour: white.
4 screw terminals
Plastic spacers for installation on steel
Sabotage protection
Approval: Grade 2

The surface-mounted contact MC4401K1K is a surface-mounted magnetic contact for easy mounting on Honeywell Galaxy alarm systems by placing the built-in 1K resistors on e.g. doors and windows against unauthorized opening.
