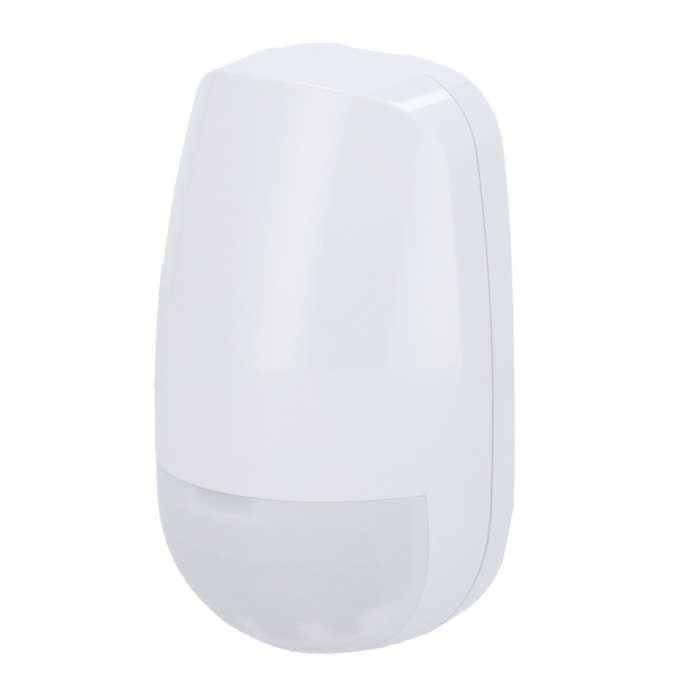

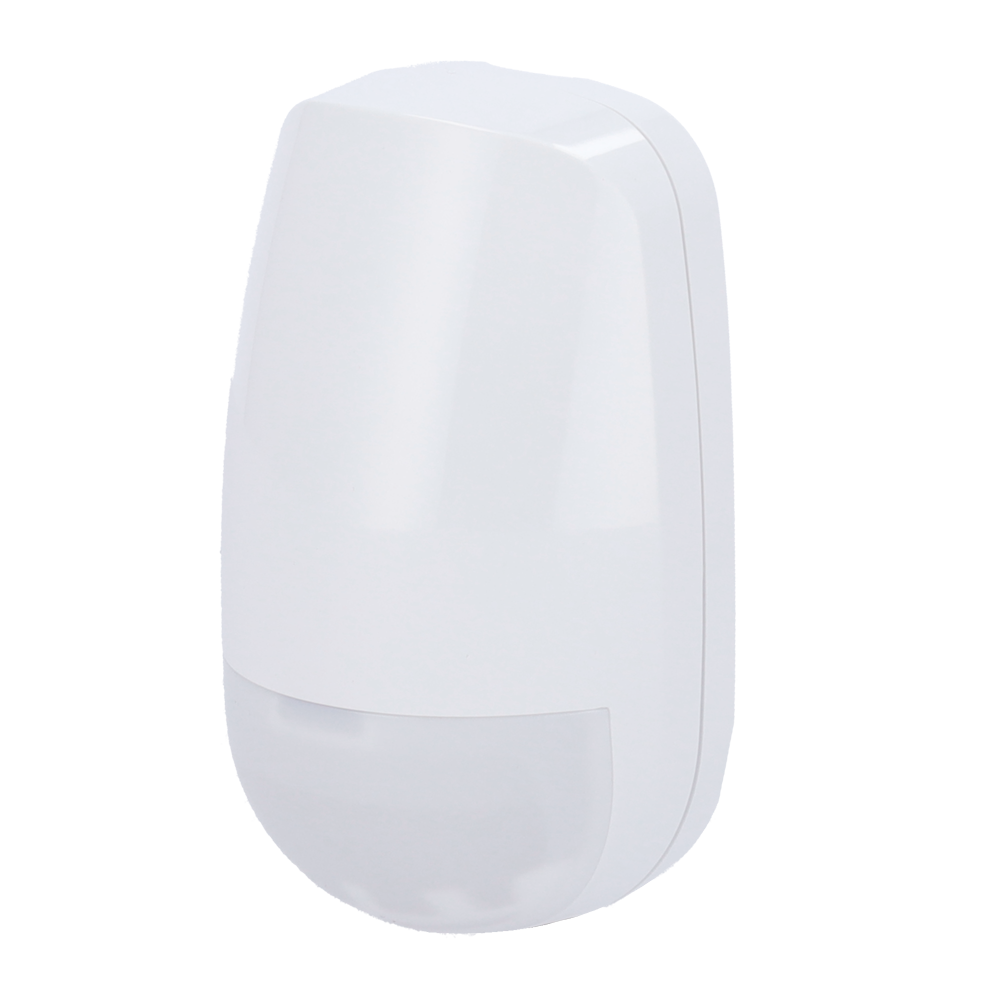

Pyronix DS-PDD12-EG2 PIR detector Dual technology wired detector

Pyronix DS-PDD12-EG2 PIR detector Dual technology wired detector. Suitable for use in homes and small offices, range 12x12 meters

Wired detector with dual technology
Class 2 Certificate
Passive infrared and microwave sensor
Detection range: 12 m
Detection angle: 85.9º
Pet immunity up to 10 kg
Selectable end-of-life (EOL) resistors
Automatic or adjustable sensitivity
Digital temperature compensation
LED alarm indicator
Tamper-proof opening
Power supply 9~16 VDC
Suitable for indoor use
Alarm resistors 1K, 2K2, 4K7, 5K6, 8K2
Tamper resistors 1K, 2K2, 4K7, 5K6
Wired outputs Alarm and tamper
Power supply 9~16 VDC (max. consumption 17 mA)
Operating temperature -10 ºC ~ +55 ºC
Operating humidity 10% to 90%
Areas of application Indoor
Dimensions 103.8 (H) x 65.7 (W) x 45.5 (D) mm

The Pyronix DS-PDD12-EG2 detector is also suitable for quick mounting on Galaxy alarm systems due to the built-in resistors.
