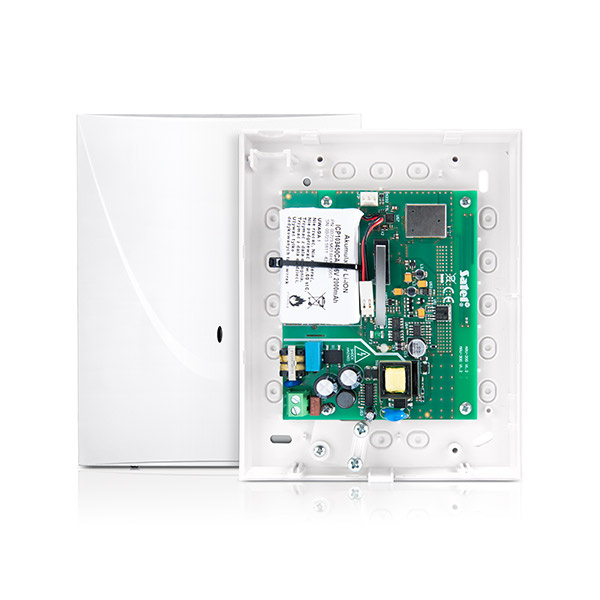

Repeater for 433MHz Micra detectors and MPT-350 keyfobs
Repeater for 433MHz Micra detectors and MPT-350 keyfobs
Support for the following MICRA wireless system devices:
MFD-300, MGD-300, MMD-300, MMD-302, MPD-300, MPD-310, MPD-310 Pet, MSD-300, MSD-350 detectors
MPT-350 keyfobs
MKP-300 wireless keypads
Encrypted wireless communication in the 433 MHz frequency band
LED indicator for repeater status
Tamper protection against opening the housing
Operating frequency band: 433.05 ÷ 434.79 MHz
PEREFECTA wireless communication range (in open field): up to 500 m
VERSA-MCU/MICRA-MTX-300 wireless communication range (in open field): up to 450 m m
Power supply voltage (±15%): 230 V AC, 50-60 Hz
Standby consumption: 8 mA
Max. consumption: 15 mA
Lithium-ion battery: 3.7 V / 1800 mAh
Operating temperature: -10° - +55°C
Max. humidity: 93±3%
Environmental class according to EN50130-5: II
Housing dimensions: 126 x 158 x 32 mm
Printed circuit board dimensions: 87 x 104 mm
Weight: 266 g
