Single 12 Volt Relay

Show all: Relays
OBS Single 12 Volt Relay
OBS Single 12 Volt Relay
OBS Single 12 Volt RelayOBS Single 12 Volt Relay
€6,95
In stock (44)
In stock, delivery time 1 to 2 business days
Required fields:
    -+
    Single 12 Volt Relay Read more
    Besteld en op voorraad voor 16:00 dezelfde dag verzonden via PostNL levertijd 1 a 3 werkdagen, Verzonden via DPD levertijd 2 a 4 werkdagen afhankelijk van de drukte bij de vervoerders.
    Telefonisch bereikbaar op werkdagen van 13:00 tot 17:00
    Een vraag? Stel hem via een Whatsapp bericht van 9:00 tot 19:00
    Description

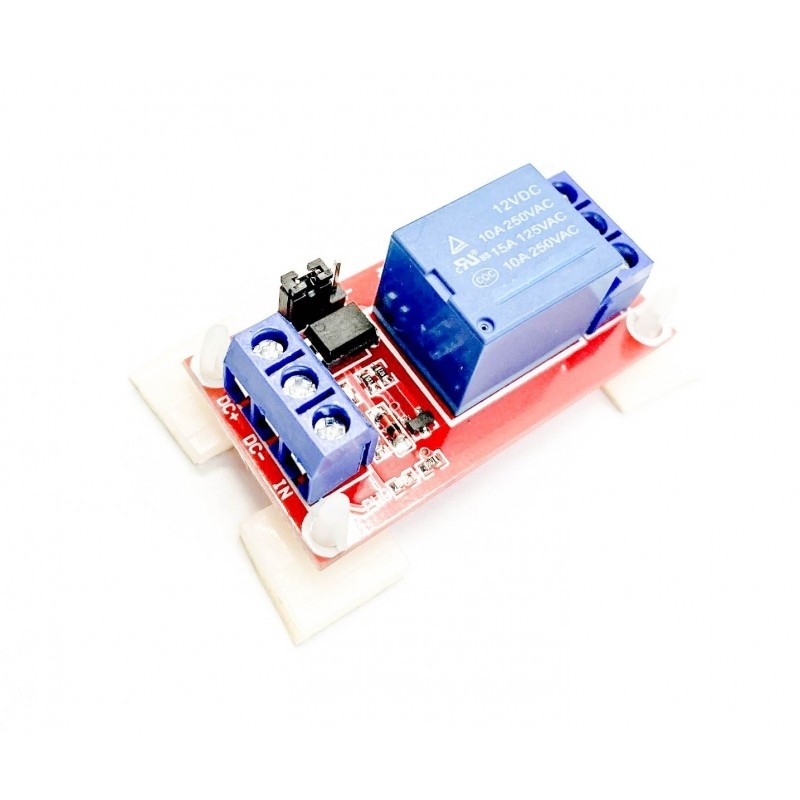

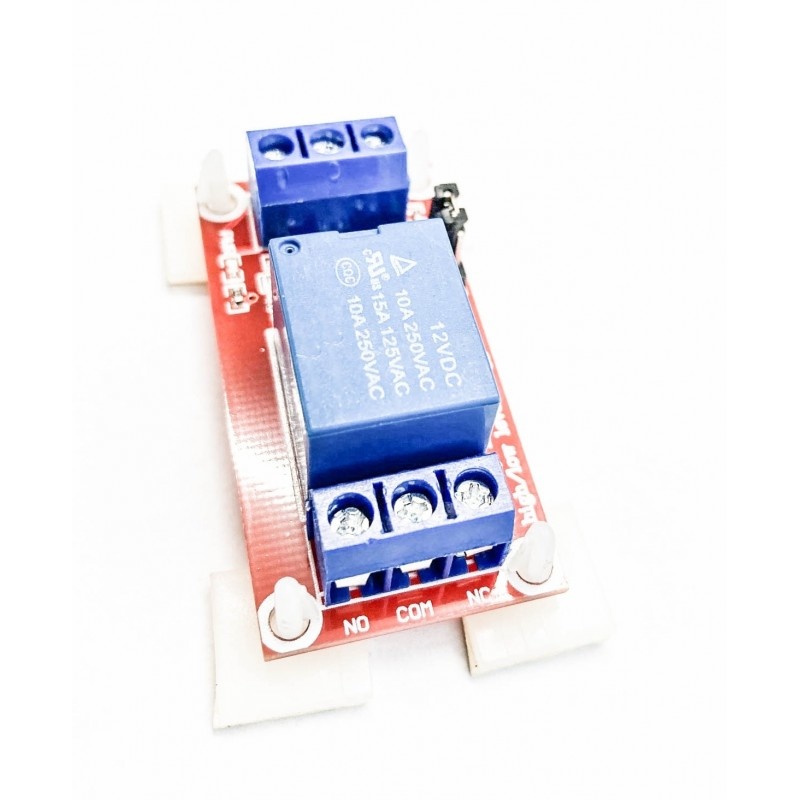

    Single 12 Volt relay.

    Dimensions of PCB approximately 50mm x 27mm, dimensions with adhesive feet approximately 57mm x 34mm
    12 Volt single relay with changeover contact.

    The changeover contact is switched by means of 12-volt control.

    Current consumption at rest approximately 5mA
    Current consumption upon relay activation approximately 45mA per activated relay
    Maximum relay to be switched 30VDC 10A, 220VAC 10A (note: do not load to maximum continuously)
    Suitable for Galaxy alarm systems.
