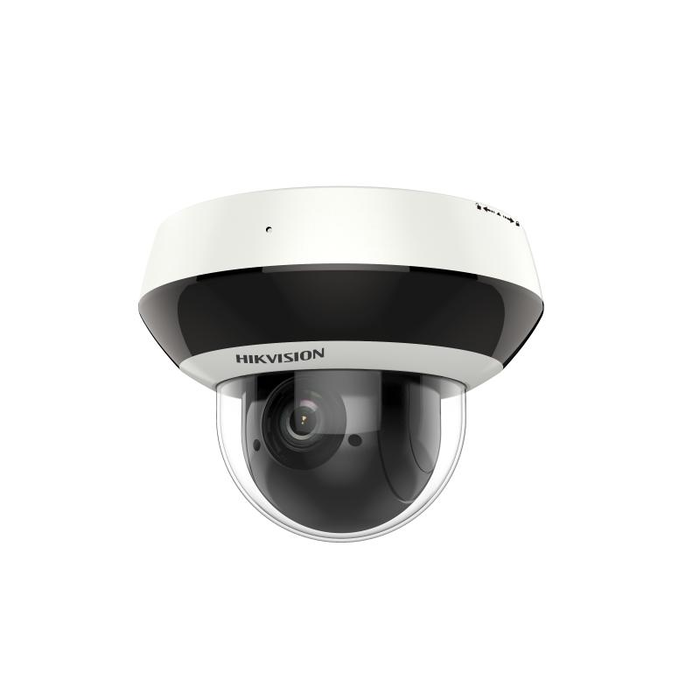

Speeddome Hikvision Hikvision IP Motorized Dome 4X

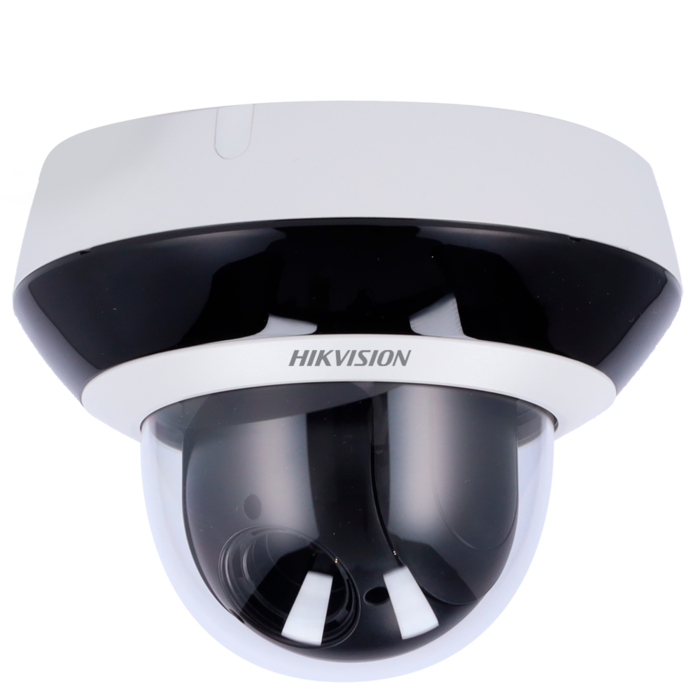

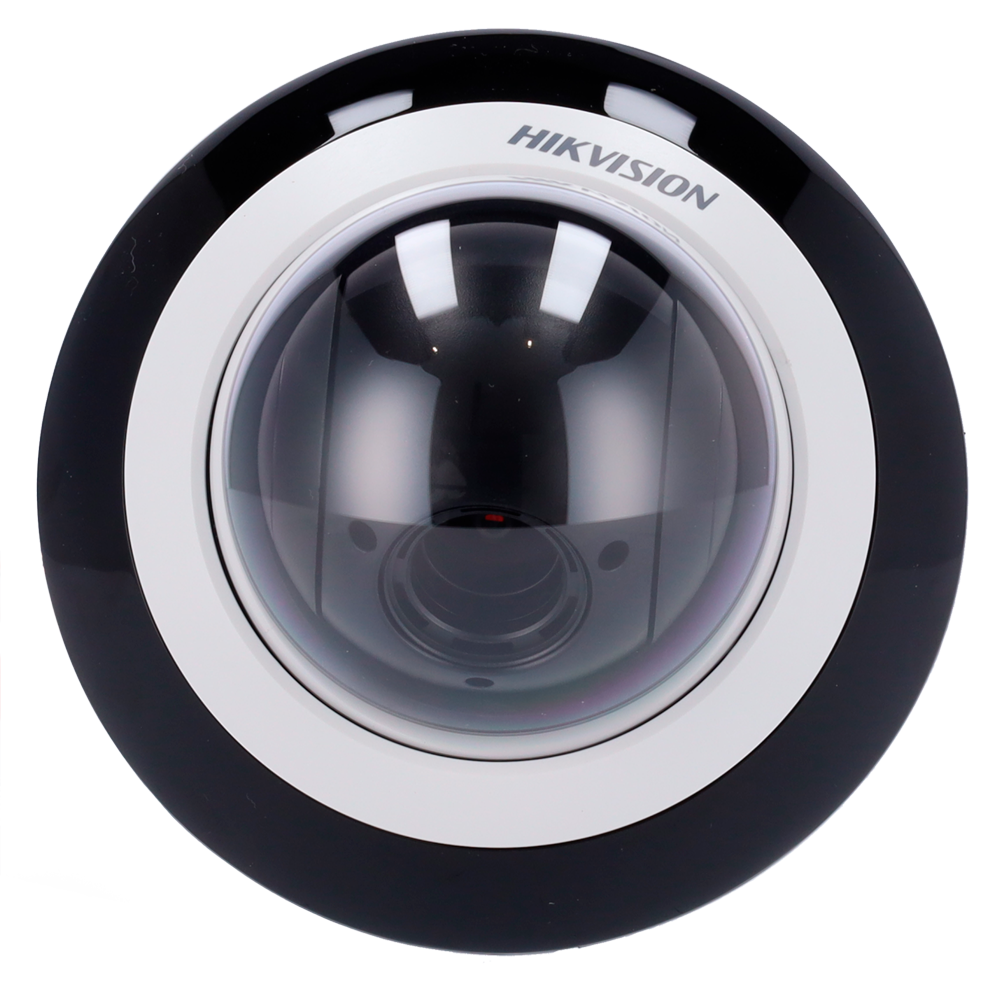

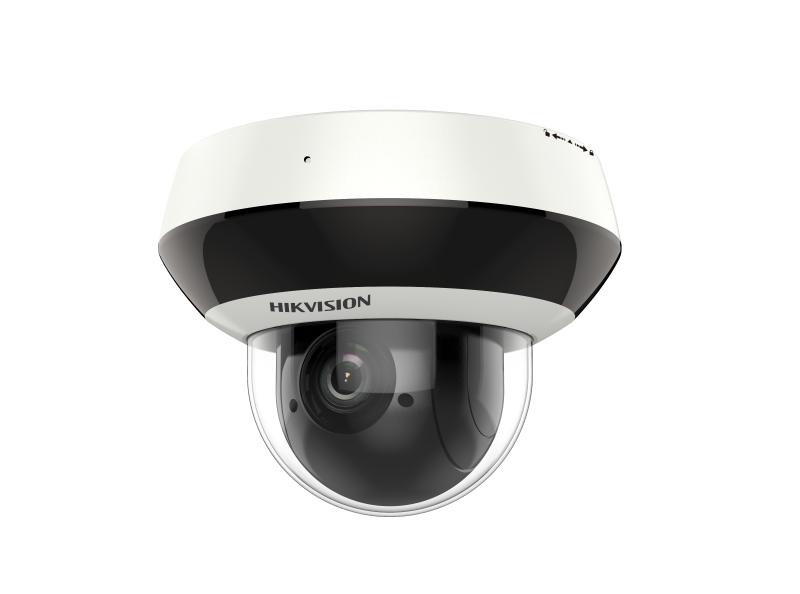

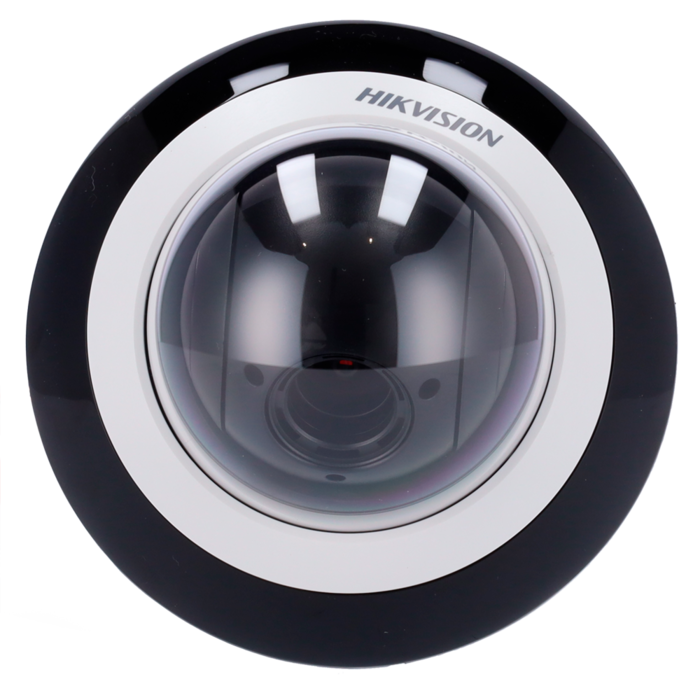

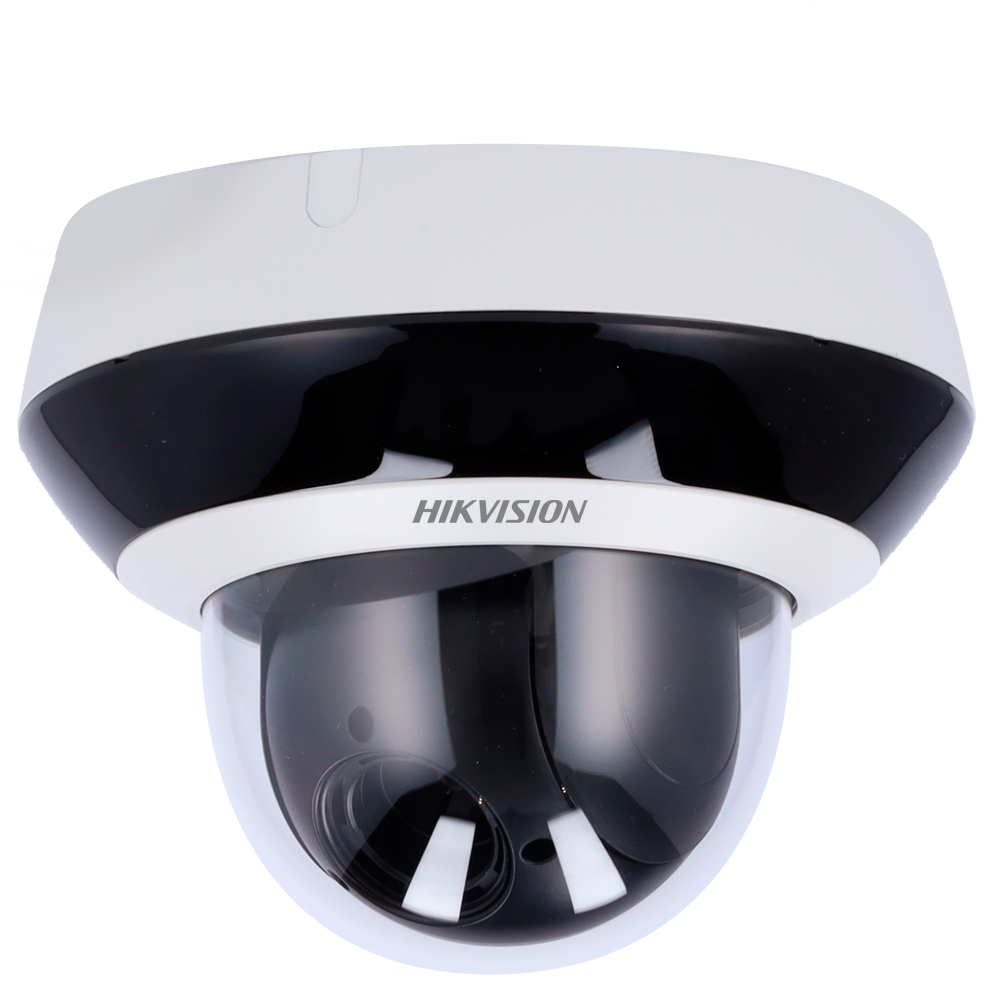

Hikvision DS-2DE2A404IW-DE3/W(C0)(S6)(C) IP Motorized Dome 4X

Extreme Low-Light IP Camera (PTZ) Powered by DarkFighter
Average Speed 100º/Segundo
4x Optical Zoom
1/2.8" Progressive Scan CMOS
4 Megapixels (2560x1440)
2.8~12mm Varifocal Motorized Lens
IR Range 20m
H.265+/H.265/H.264+/H.264 Compression
RJ-45 10/100 BaseT
Face Detection
IR Reduction
WDR (120 dB)
3D-DNR
MicroSD Card Slot up to 256 GB
Audio
Wi-Fi
PoE 802.3af
WEB, CMS, Smartphone, and NVR Interface
ONVIF Compatible
Weatherproof IP66
Vandal-resistant IK10

Image sensor: 1/2.8" Progressive Scan CMOS
Maximum resolution: 4 megapixels (2560x1440)
Main stream rate: 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) [%VAR%]
Extra stream rate: 25 fps (704x576, 640x480, 352x288)
Third stream rate: 25 fps (704x576, 640x480, 352x288)
Minimum illumination: Ultra Low Light (Powered by DarkFighter)
Color: 0.005 lux at (F1.5, AGC ON)
Black and white: 0.001 lux at (F1.5, AGC ON) 0 lux with IR LEDs, range 20 m
Compression H.265+/ H.265 / H.264+/ H.264
Lens Motorized varifocal 2.8~12 mm (optical zoom 4x)
Viewing angle (FOV) 96.7~31.6º (H), 51.1~17.7º (V), 115.1~36.3º (D)
Range performance 180 m (D), 71.4 m (E), 36 m (R), 18 m (I)
Digital zoom 16x
Electronic shutter 1/1s~1/30,000 s
Day/night Removable mechanical ICR filter
Image improvements WDR (120 dB), BLC, HLC, 3D-DNR, Privacy Masking, ROI
ANR Yes
Motion Detection: Yes
Smart Features: Face Detection
Pan/Tilt Range: Horizontal: 0~355°, Vertical: 0°~90°
Manual Speed: Horizontal: 0.1~100°/s, Vertical: 0.1~100°/s
Speed Between Presets: Horizontal: 100°/s, Vertical: 100°/s
Preset Positions: 300 Presets
Internal Memory: MicroSD Card Slot up to 256 GB
Audio: 1 Input (Line In) / 1 Output (Line Out)
Alarms: Not Available
PTZ Control: Via Network Access
Network Interface: Ethernet 10/100 BaseT
WiFi: IEEE802.11b, 802.11g, 802.11n, 2.4 GHz - 2.4835 GHz; Bandwidth: 20/40 MHz
WiFi encryption mode: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation: 802.11b: CCK, DQPSK, DBPSK, DBPSK
802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK
802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Web browser with remote access, Hik-Connect smartphone app, iVMS-4200 PC software and Hik-Central
Interoperability: ONVIF, ISAPI

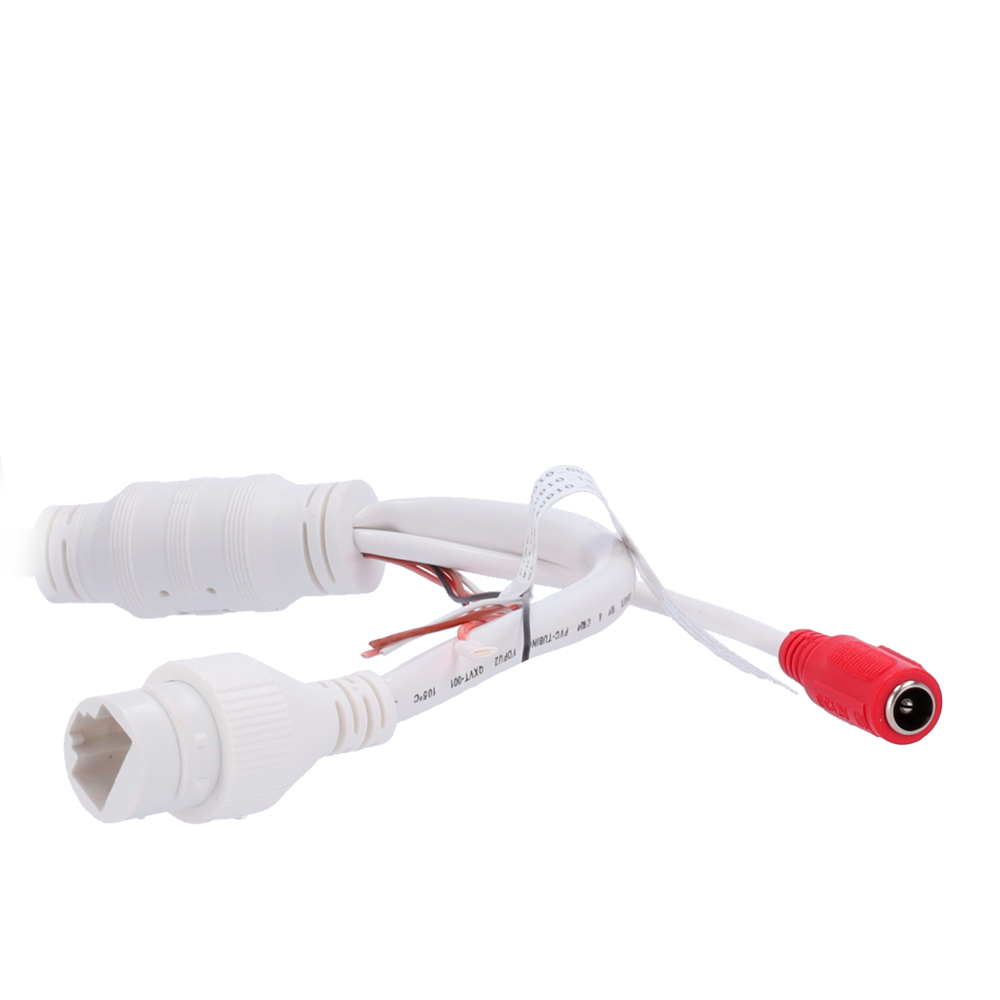

Power supply: DC 12V / max. 11.2W / IEEE802.3af PoE
Temp. Operating Temperature -20º C ~ +60º C
Protection Rating: Waterproof IP66 / Vandal-Proof IK10 / Overvoltage 4000 V
Dimensions (without bracket): Ø 130.7 mm x 101.7 mm (H)

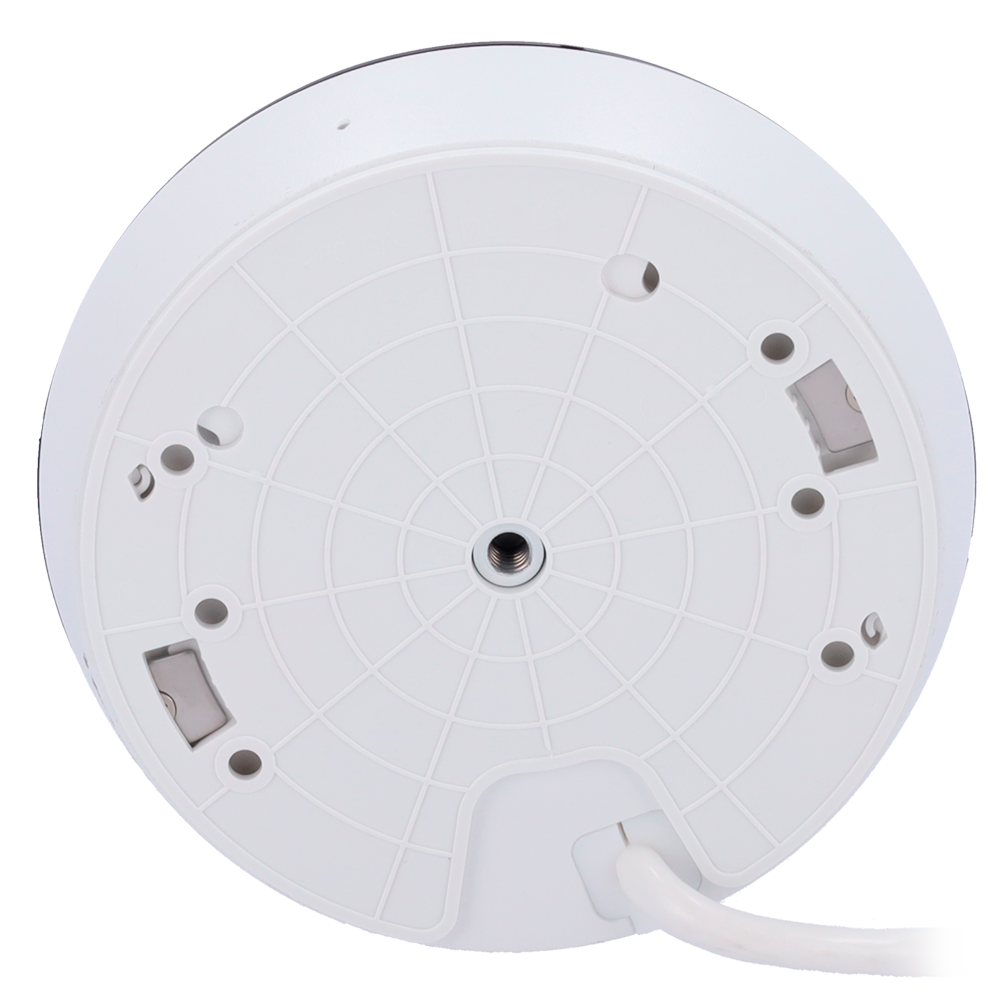

Base Dimensions: Ø 120 mm / Ø between tornillos: 96 mm / 4 tornillos
Weight (without bracket): 530 g
