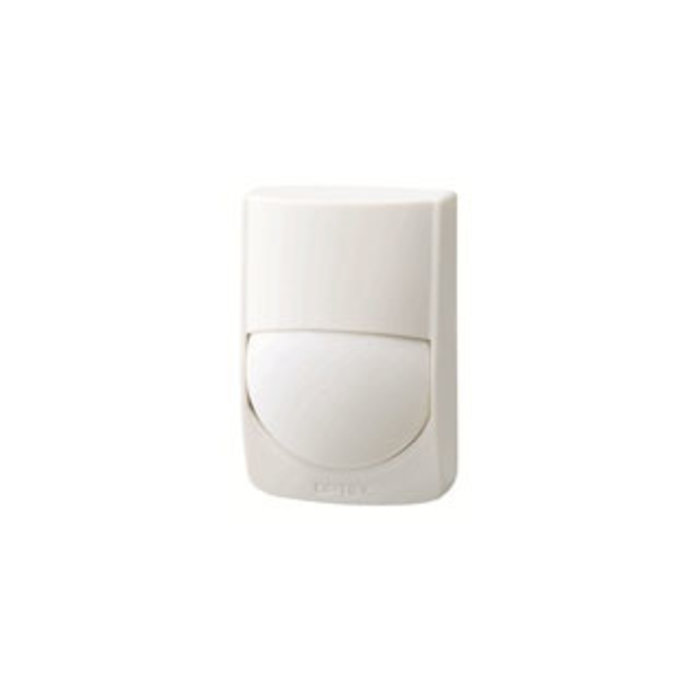

Optex RXC-ST quad PIR detector

The RXC-ST quad PIR detector has a range of 12x12m (18m with the optional lens). This detector is built on the proven reliable technology of the RX and CX series of OPTEX with an even higher performance, is animal friendly up to 20kg and comes with an adjustable mounting bracket.

Technology :

PIR with quad zone logic
Detection range : 12x12m 85° , 18m with optional lens FL-60N
Detection zones: 78
Mounting height : 1.5 -2.4m
Dimensions (hxbxd) : 93.4 x 61.4 x 46 mm
Weight : 70 gr
Voltage (min-max) : 9.5 – 16VDC
Current consumption : 8 mA
Approvals: EN 50131-2-2
incl. bracket,
quad zone logic,
noise reduction,
advanced temperature compensation,
adjustable sensitivity,
fully closed optics
