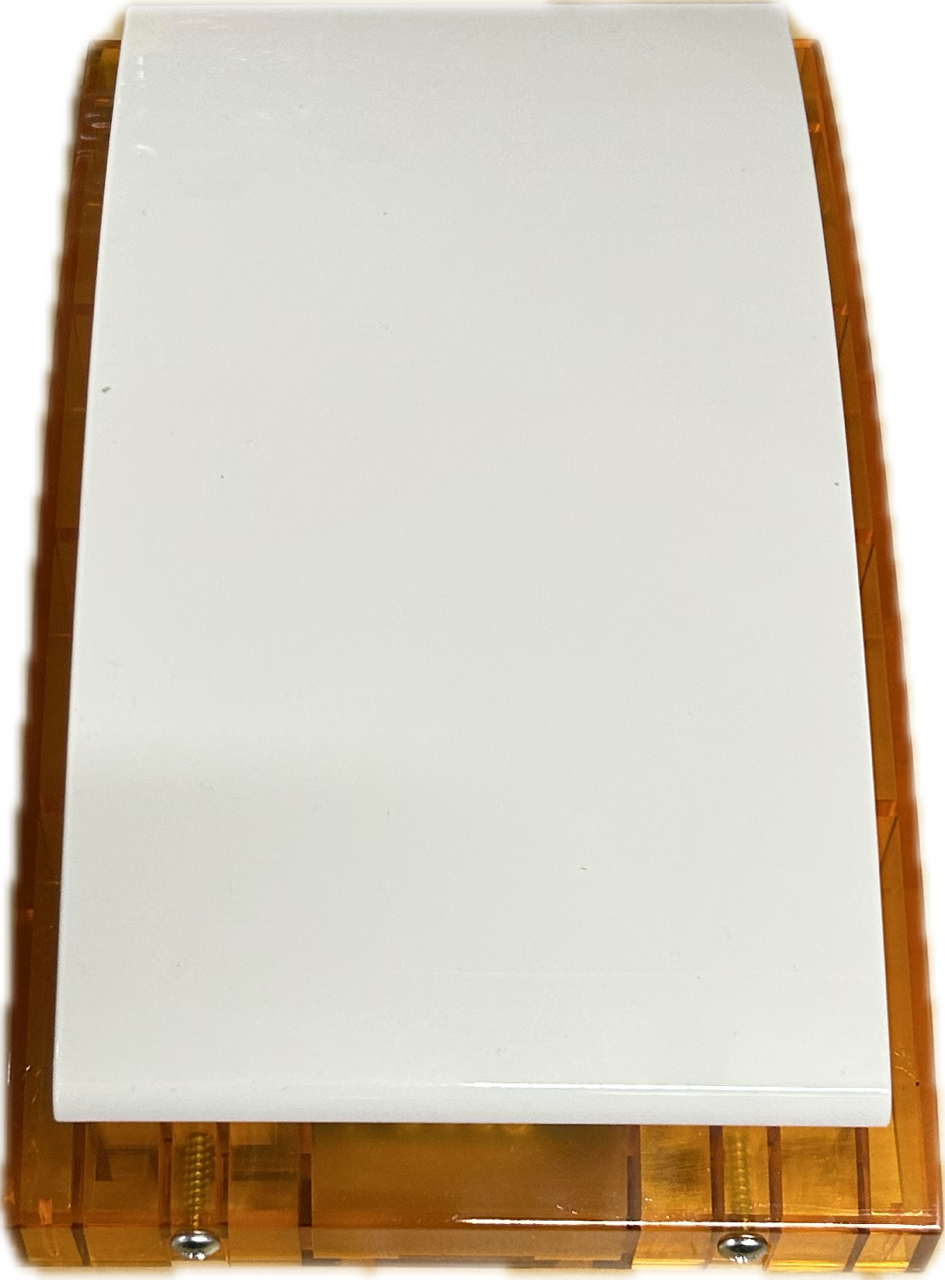

Wireless outdoor siren/strobe 868Mhz ASP-105O

ASP-105 O WIRELESS OUTDOOR SIREN/STrobe

The ASP-105 is a wirelessly activated acousto-optic
siren, suitable for outdoor use, which, thanks to the use of
impregnated electronic circuits, is immune to the effects of
atmospheric conditions. The siren/strobe is designed to
operate as part of the ABAX two-way wireless system.
It features ultra-bright LEDs and an acoustic
transducer to generate a loud alarm. You can choose from four
modulated sounds with an intensity of 120 dB. Optical and
acoustic signals can be activated independently wirelessly. Device parameters are configured
remotely using the DLOADX program. The
ASP-105 is powered by an external 12 V DC power supply and has
a built-in backup battery (6 V, 1.2 Ah). The tamper
switch protects the device against opening the
housing or removing it from the wall. The siren/strobe meets
the security requirements of EN 50131–4 for Grade 2.
The ASP–105 is available in orange (ASP–105 O).
Wireless activation of optical and
acoustic signaling
Optical signaling: ultra-bright LEDs
Choice of 4 acoustic signals
Remote configuration
Long-lasting rechargeable battery powered by an
external power supply
Tamper protection:
Avoid opening
Avoid removal from the mounting surface

TECHNICAL DATA
Built-in backup battery 6 V 1.2 Ah
Power supply (± 15%) 12 V DC
Housing dimensions 148 x 254 x 64 mm
Operating temperature -25…+70°C
Standby consumption 30 mA
Weight 1010 g
Sound level up to 120 dB
Maximum humidity 93 ± 3%
Operating frequency band 868.0 ÷ 868.6 MHz
Wireless communication range (in open field) up to 500 m m
Environmental class according to EN50130-5 IV
Complied standards EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-4, EN 50131-5-3
Maximum consumption - optical signaling 80 mA
Maximum consumption - acoustic signaling: 225 mA
Maximum consumption - optical and acoustic signaling: 265 mA
Safety class: EN50131-4 Grade 2
Name of the certification body: Telefication
