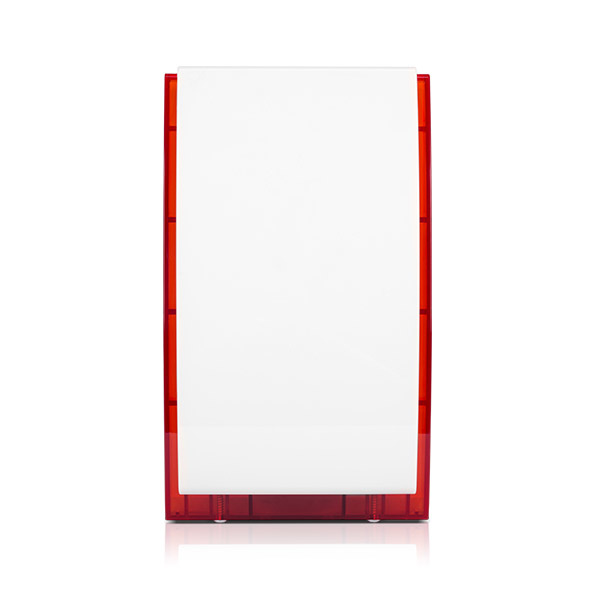

Wireless outdoor siren/strobe 868Mhz ASP-200R

Wireless outdoor siren/strobe 868Mhz ASP-200R

Wireless Outdoor Siren/Strobe 868MHz for Wireless Standalone Receiver

This wireless outdoor siren/strobe alerts you to alarm situations using both acoustic and optical signals. It operates as part of a two-way wireless system with an 868MHz standalone receiver. The device complies with EN 50131 Grade 2 requirements.

The acoustic signal is generated by a piezoelectric transducer (with four tones to choose from), and the optical signal is displayed by LEDs. Both signals can be activated independently.

Certified according to EN 50131 Grade 2 requirements
Independently activated optical and acoustic signaling
4 tones to choose from
Wireless configuration and firmware update
Suitable for:
868 MHz for standalone wireless receiver
Operates at temperatures from -40°C to + 55°C
Electronic circuits protected against weather conditions
Housing made of impact-resistant polycarbonate with very high mechanical strength
Low energy consumption and battery status monitoring
Power supply: BAT-ER 3.6 V, 13 Ah battery
Tamper protection against opening the housing/removal from the mounting surface
Wireless communication range (in open field): ACU-120 up to 500 m

ACU-220 up to 2000 m

ACU-270 up to 500 m

ACU-280 up to 1600 m
Sound level (at 1 m): up to 105 dB
Battery: ER34615 3.6 V / 13 Ah
Battery life (standard operating mode): up to 2.5 years
Standby consumption: 650 µA
Max. consumption: 480 mA
Operating frequency band: 868.0 ÷ 868.6 MHz
Operating temperature: -40° - +55°C
Max. humidity: 93±3%
Environmental class according to EN50130-5: IV
Dimensions: 148 x 254 x 64 mm
Weight: 860 g
Standards complied with: EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-4, EN 50131-5-3
Security grade according to EN 50131: Grade 2
Certified: yes
