Wireless receiver RF Portal C079-2 Module for Galaxy alarm system

Wireless Receiver C079-2 RF Portal Module in Plastic Housing for Galaxy Alarm System

This wireless receiver RF Portal Module is suitable for Honeywell Galaxy alarm systems.
It is used to expand a Galaxy alarm system with wireless detectors.
The number of wireless detectors that can be connected to this wireless receiver depends on the alarm system type.
This wireless receiver is suitable for the following Galaxy alarm control panels: the Galaxy G2-20, Galaxy G2-44+, Galaxy Flex 20, Galaxy Flex 50, Galaxy Flex 100, and Galaxy Dimension.
This module connects to the communication bus.

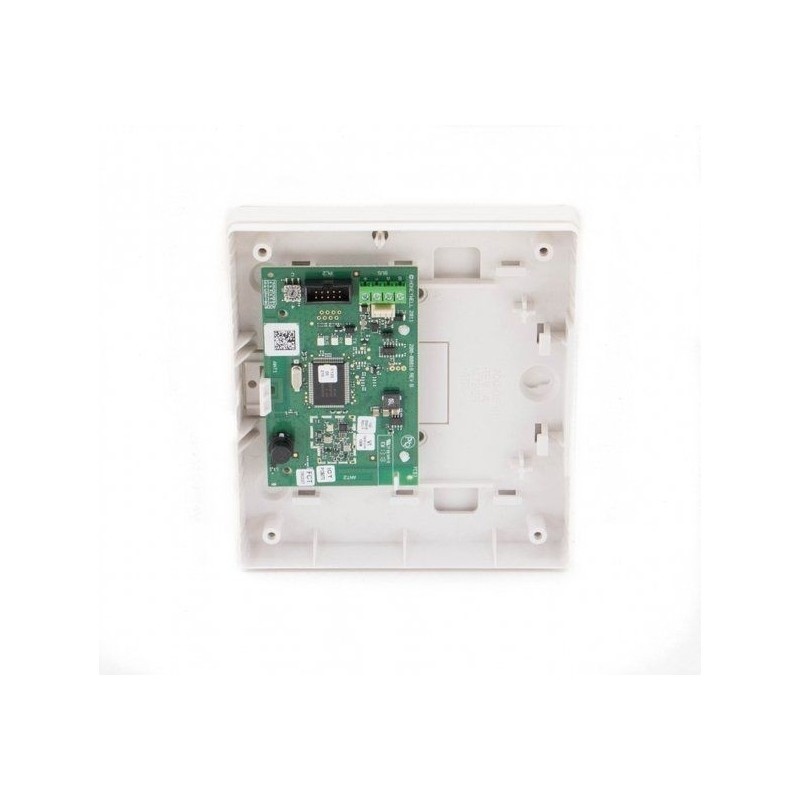

The wireless receiver is supplied in a plastic housing. This plastic housing is equipped with tamper protection.
For the Galaxy Flex alarm system, you can install the printed circuit board directly in the control panel cabinet, as the Galaxy Flex housing is made of plastic.
This RF Portal Module is supplied in a plastic housing, allowing for flexible placement outside the meter cupboard, ensuring wireless functionality is available anywhere in the desired installation. By using Honeywell's patented bidirectional wireless and fast routing technologies, reliable wireless security is possible for all installation types and sizes.

Specifications:

Bidirectional wireless interface in plastic housing
Up to 8 RF portals can be used on Galaxy control panels (4 on the GD48)
Suitable for wireless detectors and keyfobs
Up to 24 wireless zones per module
Detectors can be pre-programmed via the Remote Servicing Suite
Uses bidirectional wireless and fast routing technologies (patented technology)
Supports both Alpha and V2 protocol wireless detectors
Fully compliant with EN50131, Grade 2, Class II
Operating frequency band: 868 MHz
Power supply: 12 V DC (9 - 14 V DC)
Standby consumption: 55 mA
Operating temperature: -10…+40 °C
Maximum humidity: 0 to 85%
Printed circuit board dimensions: 125 x 76 mm
Weight: 245 g
Environmental class according to EN50130-5: II
Security grade compliant EN50131: Grade 2
Certified: Yes
