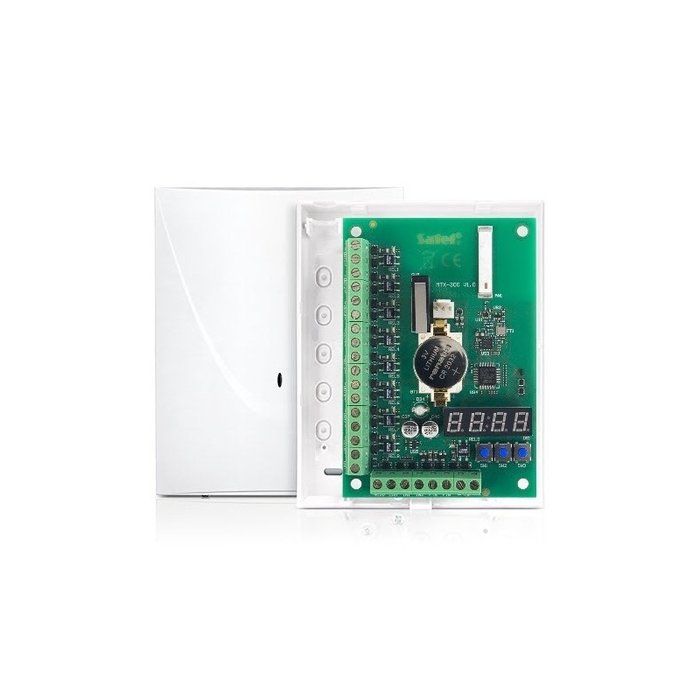

Wireless receiver Satel MTX-300 433 MHz for standalone

Wireless receiver MTX-300 433 MHz for standalone

Features:

system expansion with 433 MHz wireless devices in this category up to 16 detectors, up to 32 transmitters, up to 4 sirens/strobes
8 programmable relay outputs
2 programmable siren control inputs
support for the wireless signal repeater (optional)
tamper switch that reacts when the housing is opened
programming cable included

Technical data:

Wireless communication range (in open field): depends on the device
Operating frequency band: 433.05 ÷ 434.79 MHz
Power supply voltage: 12 V DC
Standby consumption: 65 mA
Maximum consumption: 70 mA
OC output load: 50 mA / 12 V DC
Relay output load: 60 mA / 30 V DC
Operating temperature range: -10° - +55°C
Maximum humidity: 93±3%
Environmental class according to EN50130-5: II
Housing dimensions: 126 x 158 x 32 mm
Weight: 210 g
MTX-300 wireless receiver downloads
Quick start guide MTX-300 wireless receiver.
MTX-300 433 MHz wireless receiver manual for standalone follow this link.
MTX-300 wireless receiver software
