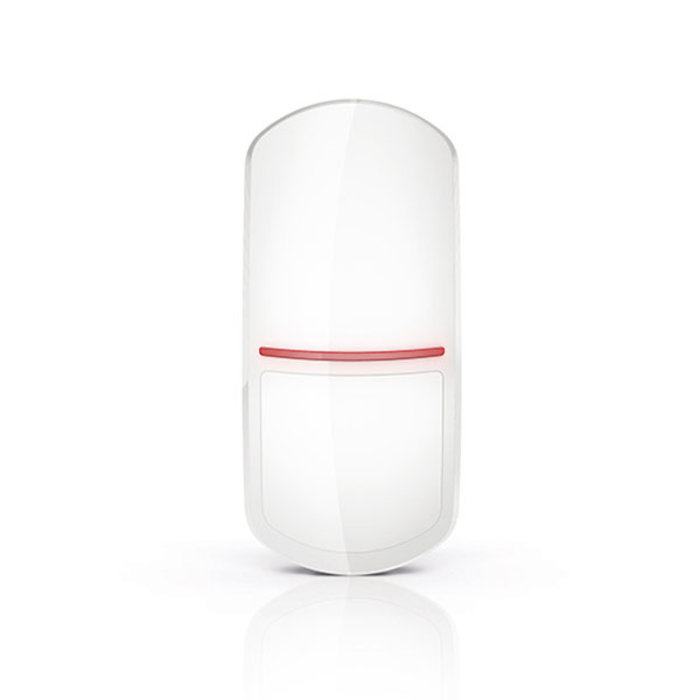

APD-200 - ABAX 2 wireless PIR detector 15x24m with mounting bracket

APD-200 - ABAX 2 wireless PIR detector

The APD-200 detector is designed to be used with the ABAX 2 / ABAX two-way wireless system.

• Certificate: EN 50131 Grade 2
• Double pyro-element (passive infra-red detector)
• State-of-the-art lens with unique beam distribution
• Detection area: 15 m x 24 m, angle 90°
• Advanced digital signal processing
• Dynamic temperature compensation
• Crawl zone control (on/off)
• Built-in temperature sensor (temperature measurement from -10°C to + 55°C)
• LED indication for activating test mode
• Low energy usage and control of the battery status
• "ECO" option for extending battery life (only with ABAX 2 RF controller)
• Power supply: CR123A 3 V battery
• Adjustable bracket for wall or ceiling mounting included
• Tamper security opening/removing of the case (of the PIR) and removing from the mounting surface
