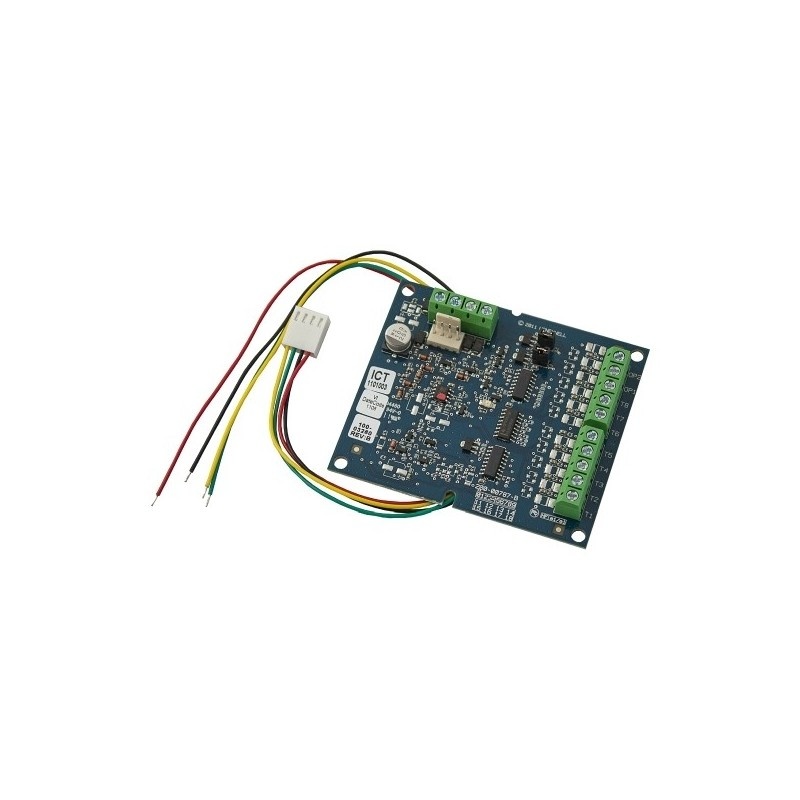

Galaxy Flex output module for various alarm controls

Honeywell Galaxy Flex expansion module for more outputs.

for expanding 8 low-power outputs
suitable for the Galaxy Flex 3 and Flex+ systems
suitable for easy installation in the plastic housing
maximum 1 per exchange
Power supply: 12 V DC
Standby consumption: 5 mA
Maximum consumption: 10 mA
Output power (OP1-OP2): 400 mA
Output power (T1-T8): 50 mA
Maximum switching voltage: 15 V DC
Operating temperature: -10…+55 °C
Maximum humidity: 25 to 55%
Print dimensions: 80 x 68 x 15 mm
Weight: 75g
Warranty: 2 years
Environmental class in accordance with EN50130-5: II
Security Grade in accordance with EN50131: Grade 2
Certified: no
