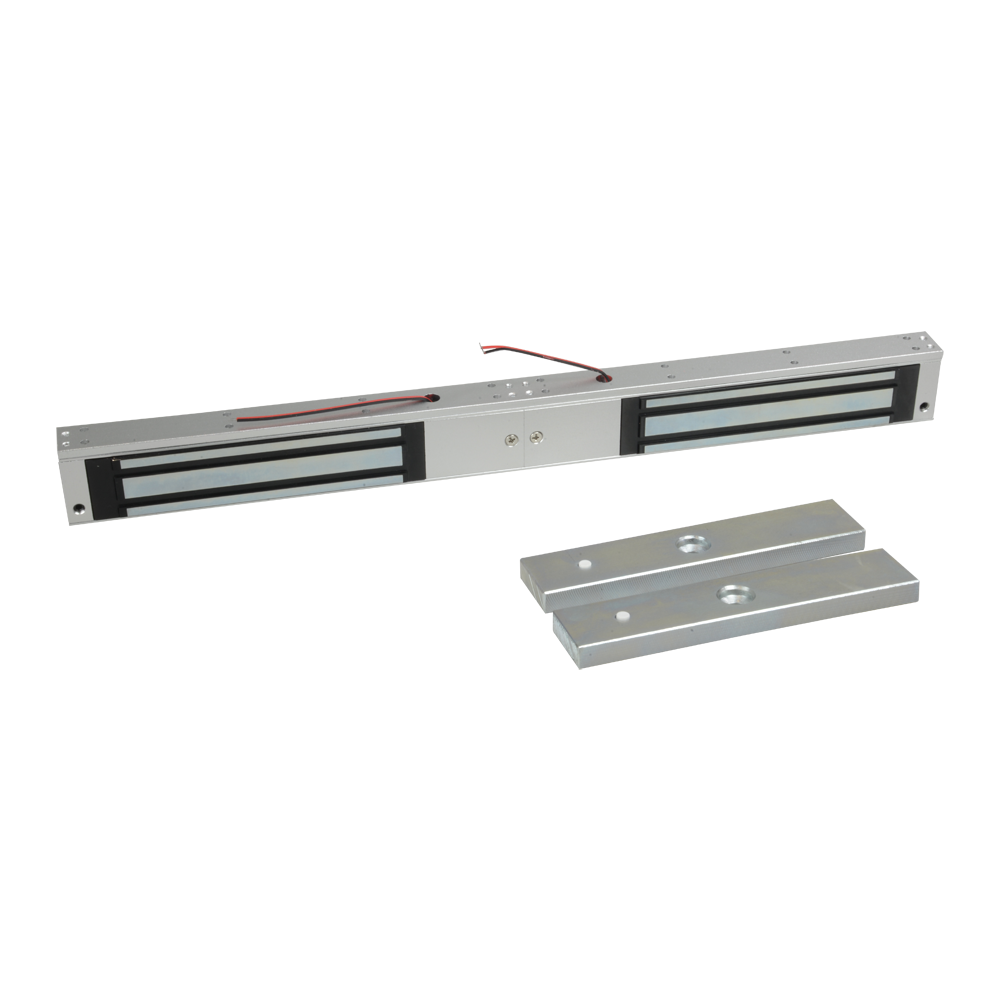

Door magnet Electromagnetic door lock 280KG DUAL Electromagnetic lock for double doors

Door magnet Electromagnetic door lock 280KG DUAL Electromagnetic lock for double doors

Electromagnetic magnet
For double doors
Holding force 280 kg per magnet
Fail Safe (NC) opening mode
Surface mounting
LED, status sensor, and adjustable time delay
Electromagnetic suction cup for double doors
Fail Safe / Reverse (NC) functionality
Linear load resistance 280 kg per magnet
Magnets can be controlled remotely.
LED door lock status
NO/NC/COM contact output for door lock status
Lock time with adjustable delay
Surface mounting
Made of aluminum
Door type Double: 2 doors
Power supply DC 12 V / 520 mA max. or DC 24 V / 260 mA max. (CAUTION per magnet)
Mounting Surface
Protection: Indoor
Temp. Operating temperature: -10°C to +55°C
Magnet dimensions: 500 (W) x 49 (H) x 25 (D) mm
Backplate: 180 (W) x 38 (H) x 13 (D) mm
