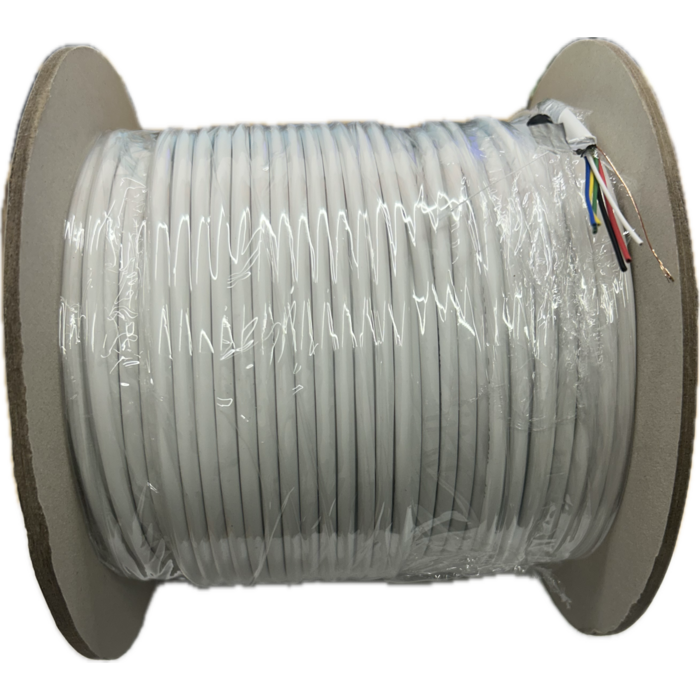

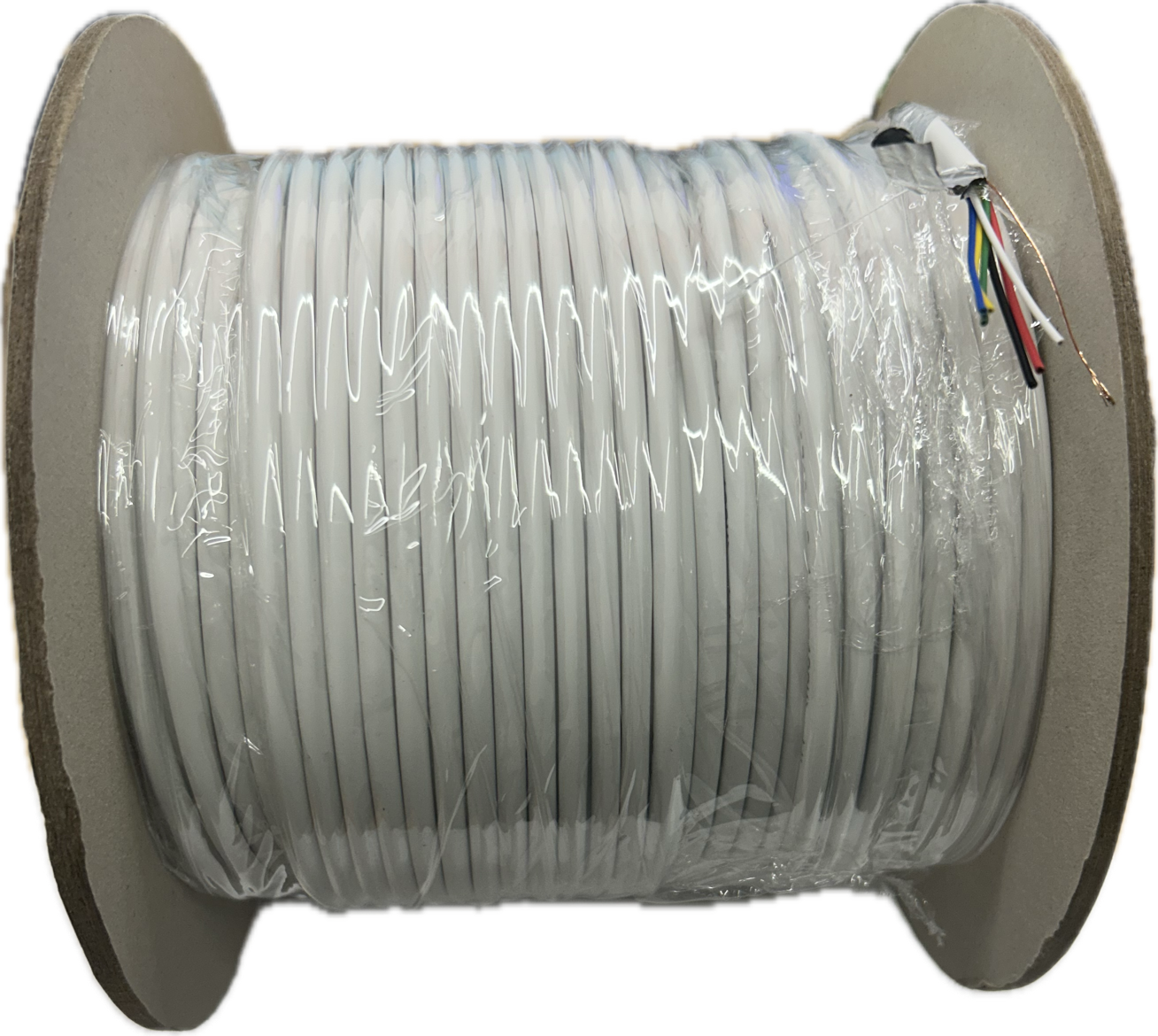

100 meters Alarm cable 2x0.5+4x0.22m shielded flexible roll of 100 meters 99.95% copper with aluminum foil shielding

100 meters Alarm cable 2x0.5+4x0.22m shielded flexible roll of 100 meters 99.95% copper with aluminum foil shielding

Length 100 m
Conductor material Bare copper (purity 99,95%)
Signal cores (4x) 0,22 mm² [7*(0,185 ± 0,01) mm]
Power cores (2x) 0,50 mm² [16*(0,185 ± 0,01) mm]
Insulation material LSZH polymer
Insulation thickness 0,20 mm
Insulation diameter 1 1,15 ± 0,10 mm
Insulation diameter 2 1,35 ± 0,10 mm
Signal wire colors Green, Yellow, White, Blue
Power cord colors Black, Red
Shield Aluminum foil and Mylar tape
Drainage pipe Copper [7*(0,15 ± 0,01) mm]
Tear-off cord Polyester
Housing material LSZH (Low Smoke Zero Halogen)
Tire diameter 4,70 ± 0,30 mm
Deck thickness 0,50 mm
DC resistance (0,22 mm² ≤ 9,5 Ω/100 m
DC resistance (0,50 mm² ≤ 4,35 Ω/100 m
Isolation Resistance ≥ 10 MΩ.km
Operating Voltage 60 V
Tensile strength ≥ 10 Mpa
LSZH elongation ≥ 150%
Operating temperature -20 °C to 70 °C
Fire certification CPR Eca
Cover color White
Roll weight 4,0 ± 0,6 kg
