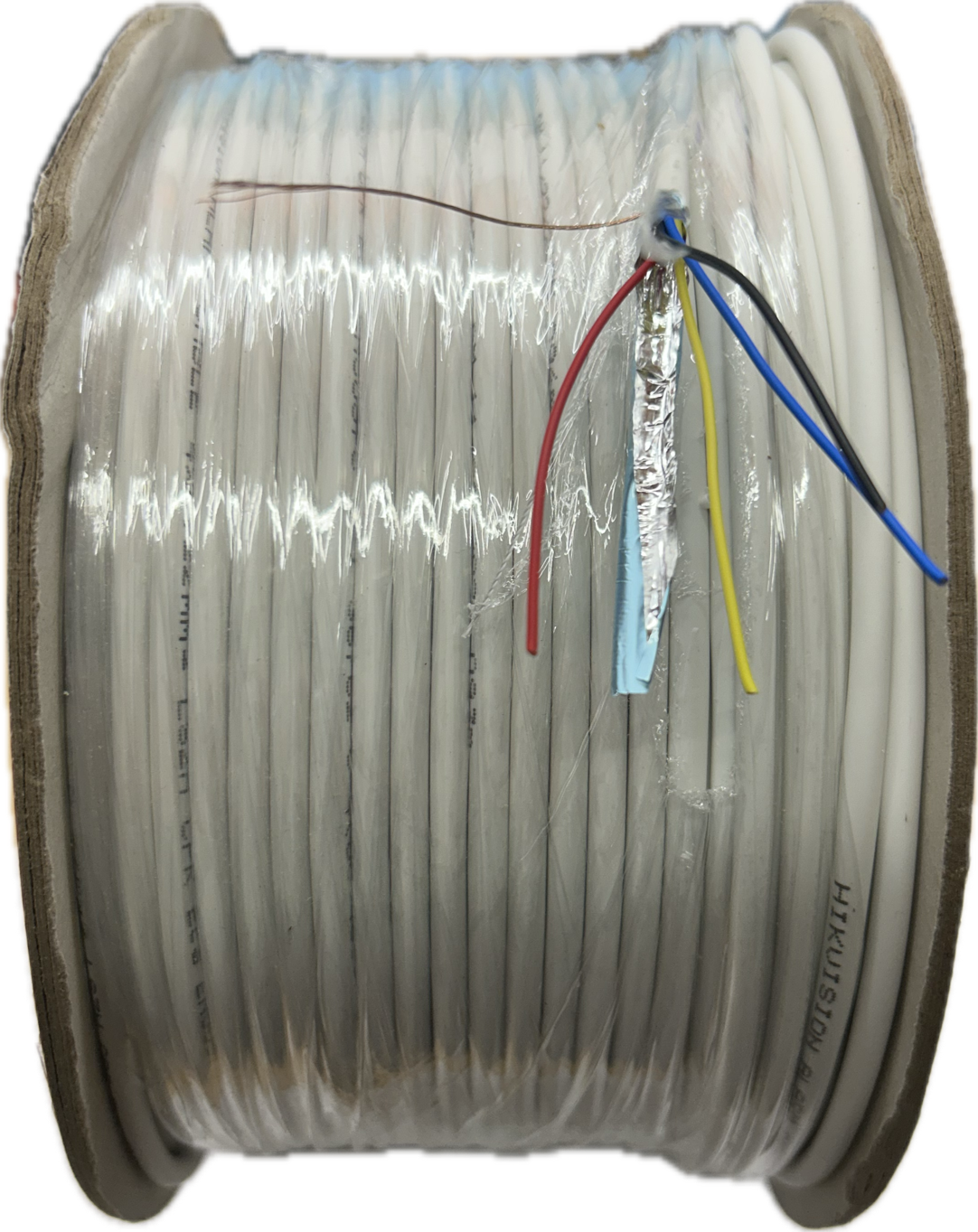

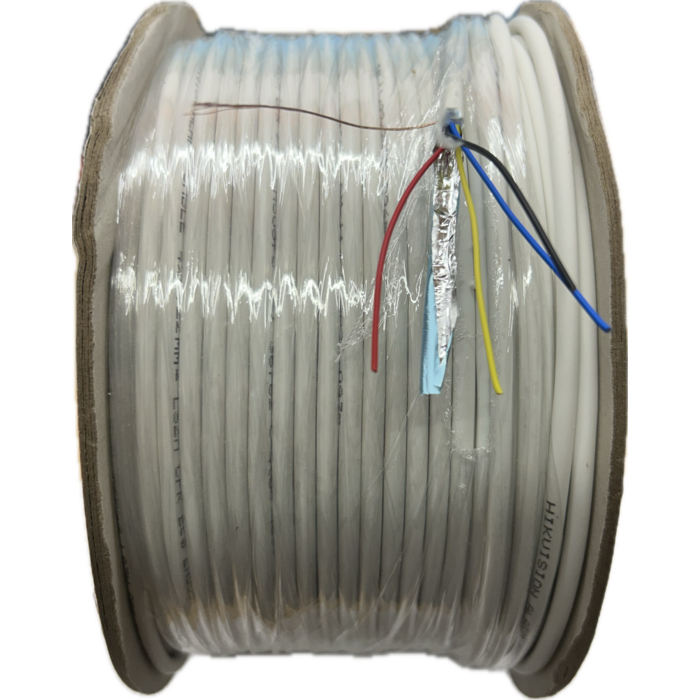

100 meters of alarm cable 4x0.22m flexible roll of 100 meters 99.95% shielded copper

100 meters of alarm cable 4x0.22m flexible roll of 100 meters 99.95% COPPER shielded

Length 100 m shielded
Conductor material FLEX copper (purity 99,95%)
Conductor cross-section 4 x 0,22 mm² (7*0,185 ± 0,01 mm)
Insulation material LSZH (Low Smoke Zero Halogen)
Insulation thickness 0,20 mm
Wire diameter 1,05 ± 0,10 mm
Thread colors Red, Yellow, Blue, Black
Shield Aluminum foil and Mylar tape
Drainage pipe Copper (7*0,15 ± 0,01 mm)
Tear-off cord Polyester
Housing material LSZH
Tire diameter 3,90 ± 0,30 mm
Deck thickness 0,50 mm
DC resistance ≤ 9,5 Ω/100 m
Isolation Resistance ≥ 300 MΩ·km
Operating Voltage 60 V
Tensile strength ≥ 10 Mpa
LSZH elongation ≥ 150 %
Operating temperature -20 °C to 70 °C
Fire certification CPR Eca / RoHS 2.0
Cover color White
Roll weight +/_ 2,5 kg
