Description

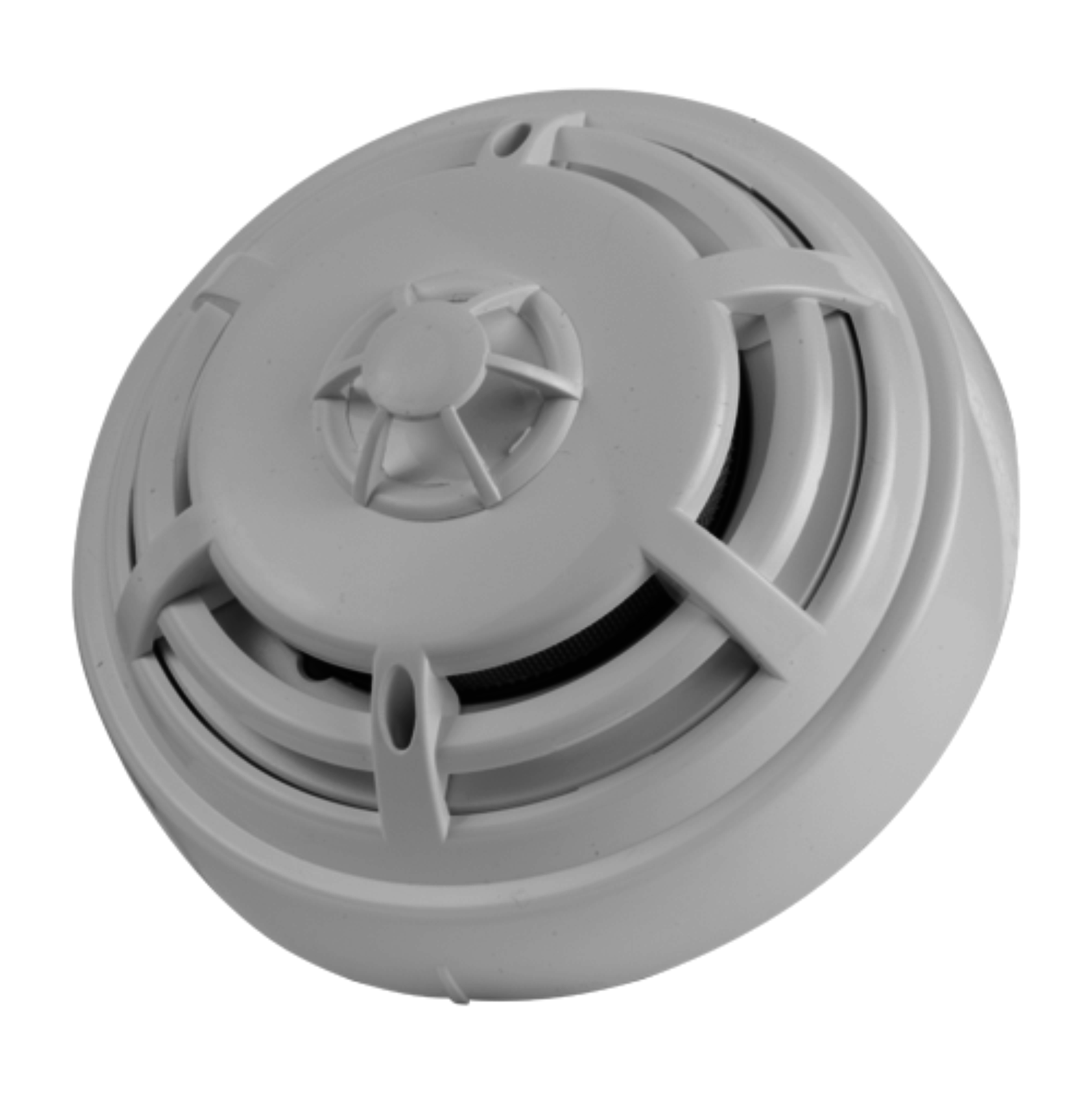

Optical and thermal smoke detector 9000M with base
EN54 Part 5 certified
Dual LED indication ensures the fire alarm is visible from all angles
Made of heat-resistant ABS material

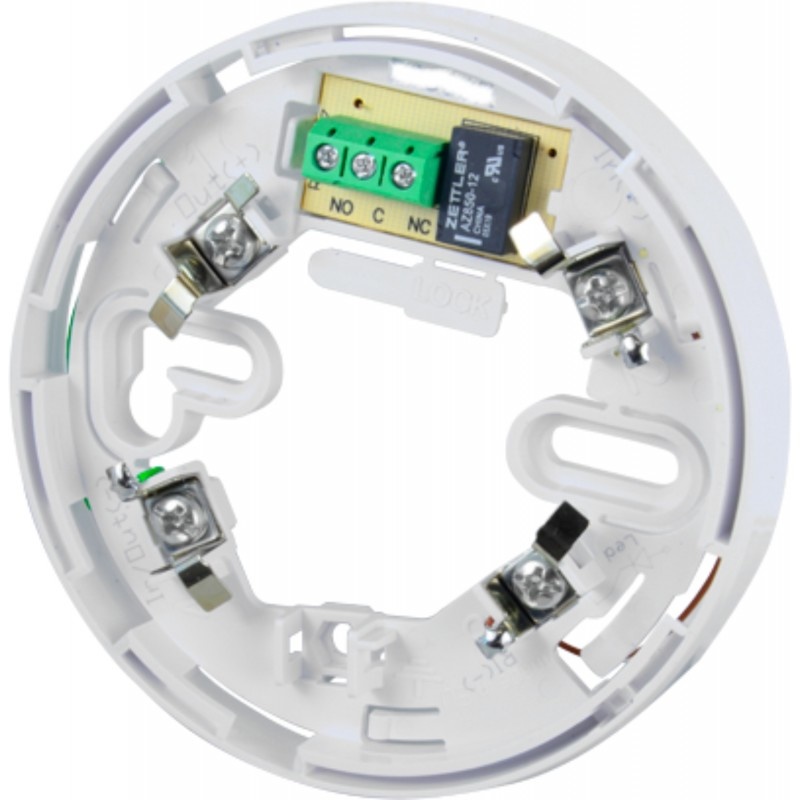

Low-profile mounting base with relay included
Maximum supply voltage: 12VDC 0.5A / relay NO/NC/C
Option to lock the smoke detector into the base to prevent removal
Approximate dimensions:
Ø 100mm, height ≤ 52mm
Supply voltage (DC): 9–30 V DC
Thermal threshold: 57°C
Standby current consumption (max.): 80 μA
Alarm current consumption (max.): 20 mA
Activation time (max.): 60 seconds
Flash interval: 16 seconds
Permitted cable cross-section: 0.4–2.0 mm²
Certification: EN54 Parts 5 & 7
