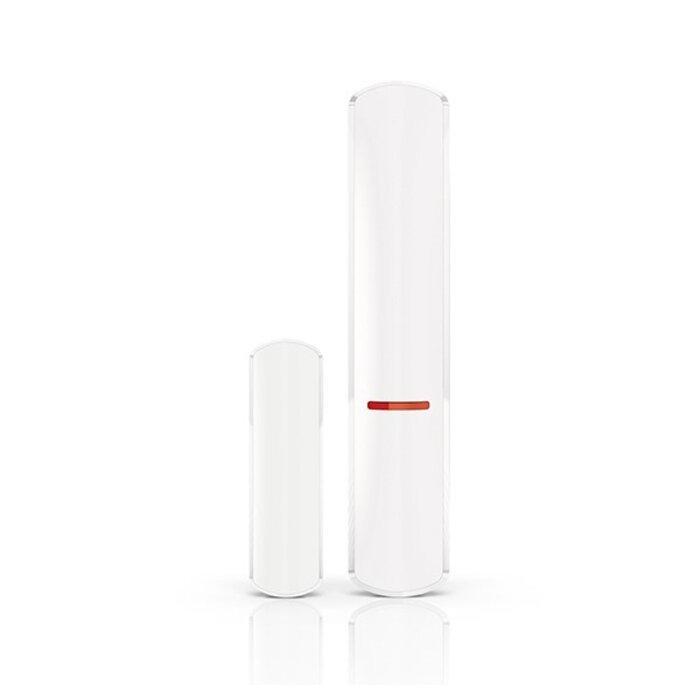

Satel XD-2 - Multifunction detector white (MC, Vibration, Vibration+MC, Water)

Satel XD-2-Multifunctional detector white (MC, Vibration, Vibration+MC, (Water is optional))

The XD-2 is a multifunctional wired detector, which can work with any alarm system. The XD-2 can work as: magnetic contact, vibration detector, vibration detector and magnetic contact, and as (water detector is optional)

the option to select the detector type via DIP switches
operation:
magnetic contact:
detection of opening a door, window, etc.
input for connecting an NC type wired detector
1 alarm output
vibration detector:
detection of shock and vibration when attempting to force a door or window
input for connecting an NC type wired detector
1 alarm output
vibration detector and magnetic contact:
detection of shock and vibration when attempting to force a door, window, etc.
detection of opening a door, window, etc.
input for connecting an NC type wired detector
1 or 2 alarm outputs
water detector NOTE OPTION

detection of water/flooding
input for connecting external water sensor FPX-1 (white), FPX-1 BR (brown) or FPX-1 DG (anthracite) - sensor available separately
1 alarm output
selectable alarm output type (NC or NC) LED indicator
remote switching on/off of LED indicator
power supply voltage control
tamper protection against opening the housing
2 magnets included (for surface-mounting and flush-mounting)
Power supply voltage: 12 VDC ±25%
Standby consumption: 11.5 mA
Max. consumption: 15 mA
Outputs (EOL/S/Tamper): 40 mA / 24 VDC
Relay resistance (EOL): 16 Ω
Relay resistance (S): 26 Ω
Z1 input sensitivity: NC 150 ms / water sensor 1 s
Vibration detection range: up to 3 m (surface-dependent)
Operating temperature: -10° - +55°C
Max. humidity: 93±3%
Dimensions detector housing: 25 x 136 x 29 mm
Dimensions surface-mounted magnet housing: 15 x 52 x 6 mm
Dimensions surface-mounted spacers housing: 15 x 52 x 6 mm
Dimensions flush-mounted magnet housing: ø10 x 28 mm
Max. distance - surface-mounted magnetic contact: 15 mm
Max. distance - flush-mounted magnetic contact: 19 mm
Weight: 46 g
Environmental class according to EN50130-5: II
Meets the standards EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6
Security Grade according to EN 50131: Grade 2
Certified: no
