Victron Multiplus II 5000VA Home Battery with 1x Dyness 10.24KWH with standard installation

Victron Multiplus II 5000VA Home Battery with 1x Dyness 10.24WH with standard installation *

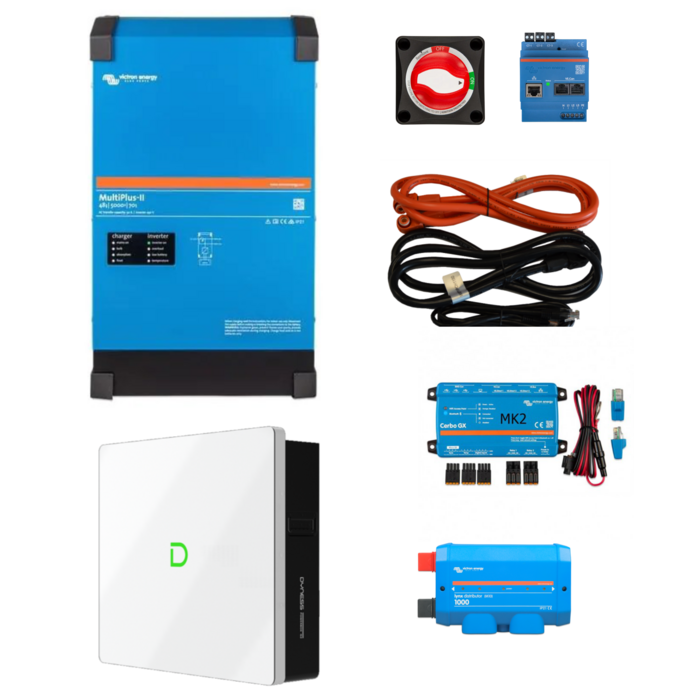

This package contains:

Victron Multiplus II 5000VA 1-phase

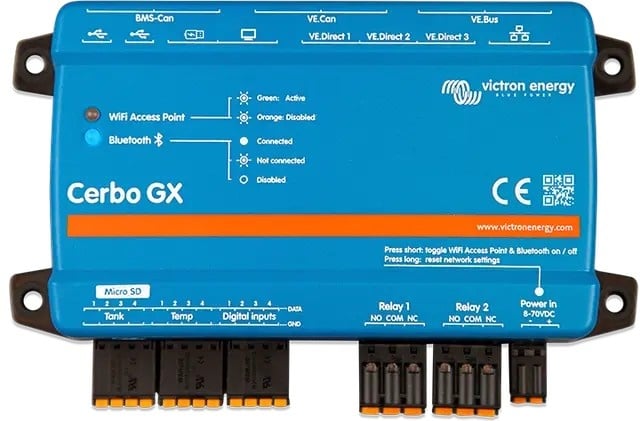

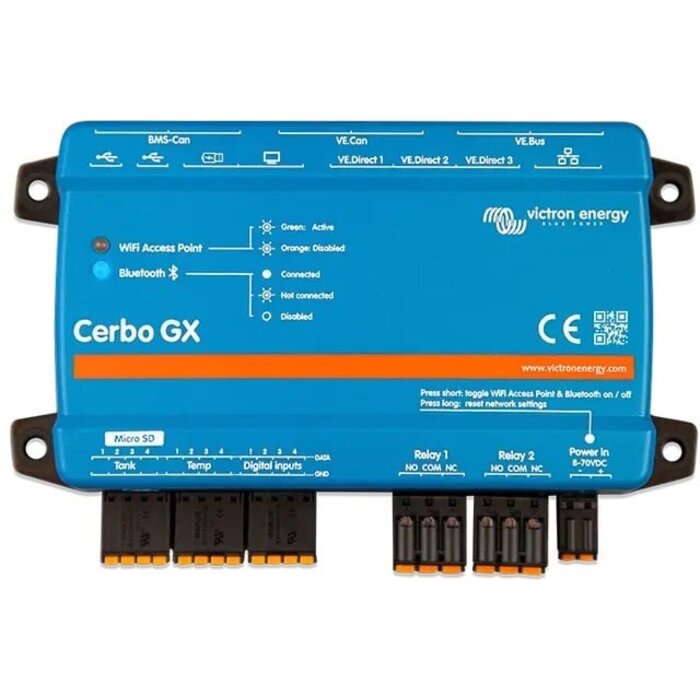

Victron Cerbo GX MK2 (communication module)

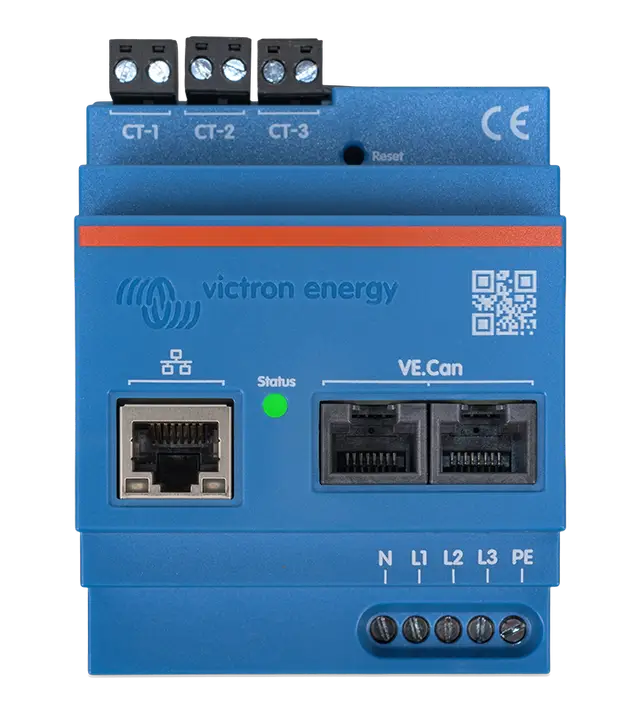

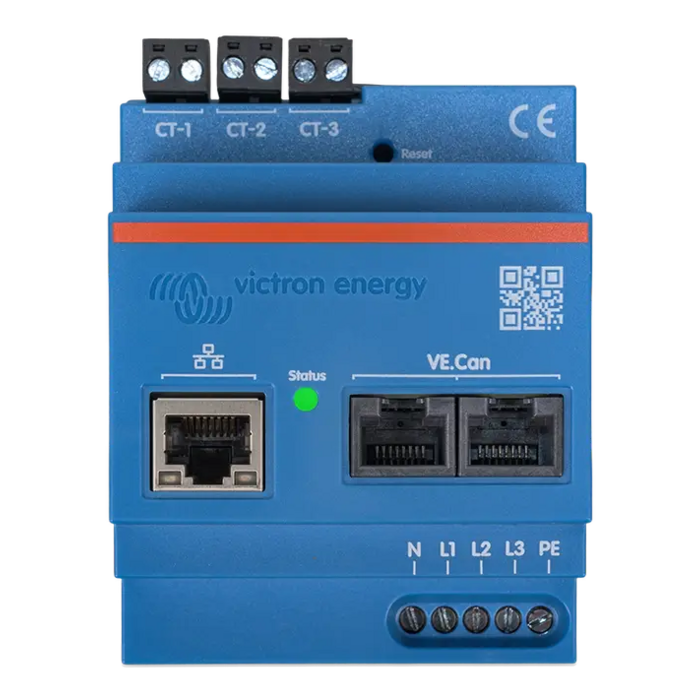

Victron three-phase energy meter (VM-3P75CT)

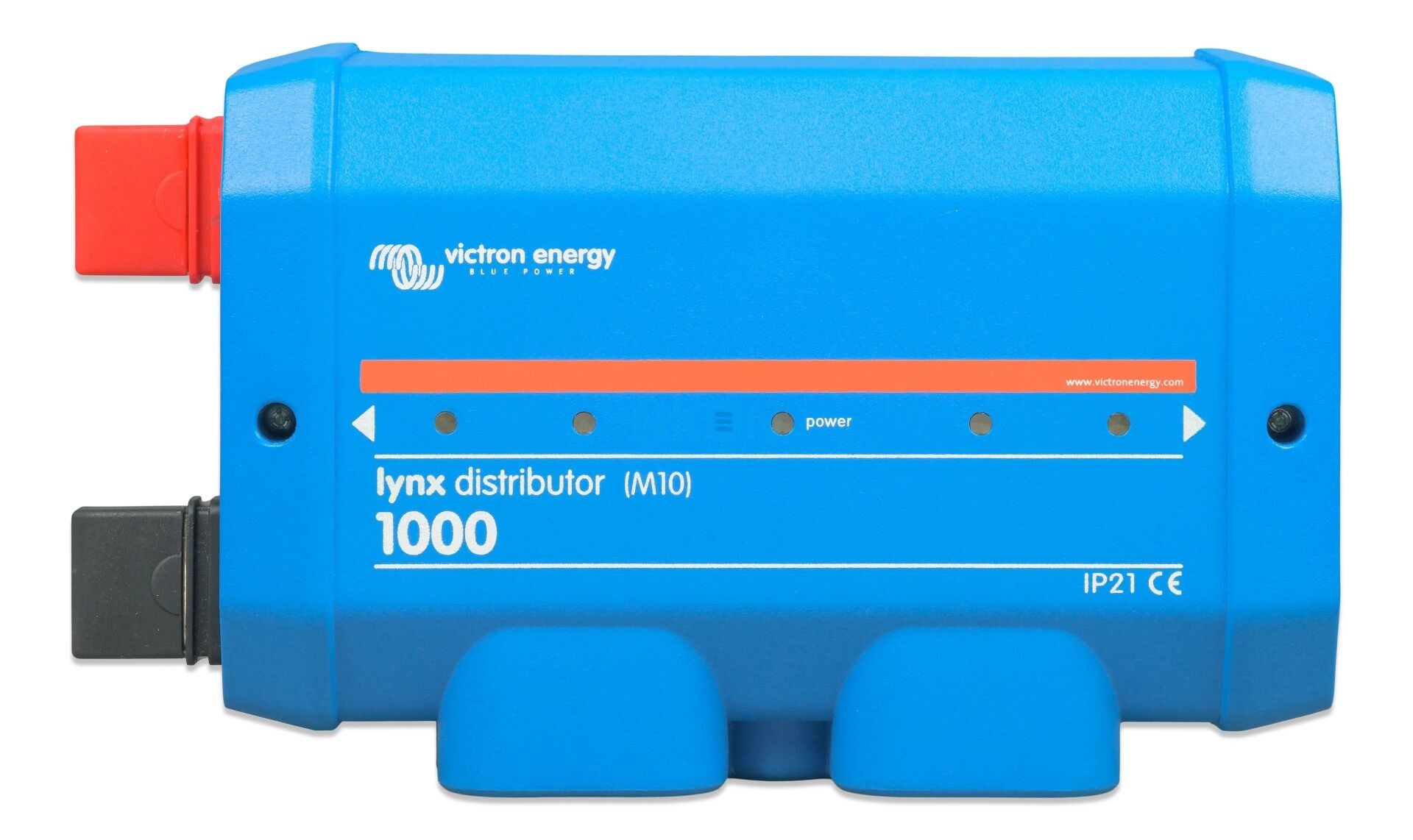

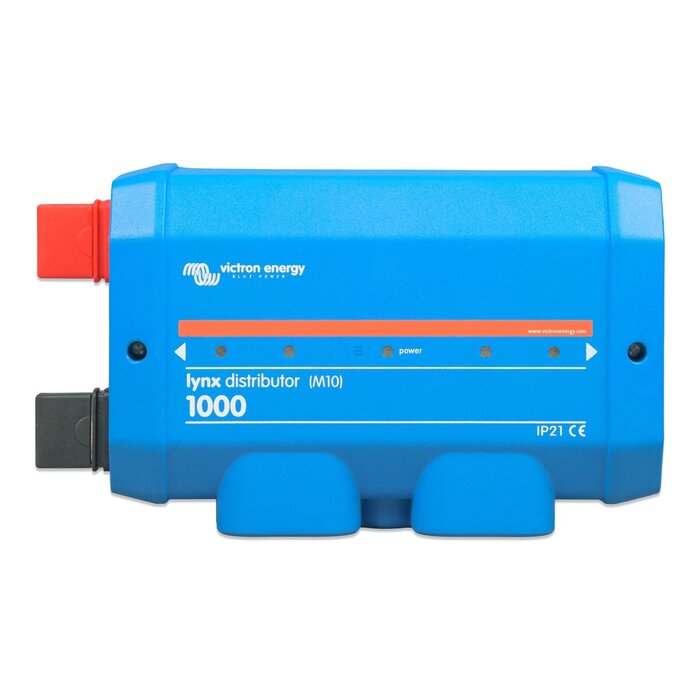

Victron Lynx Distributor (Distribution unit for battery and Multiplus cabling)
Dyness 10.24KWH Battery

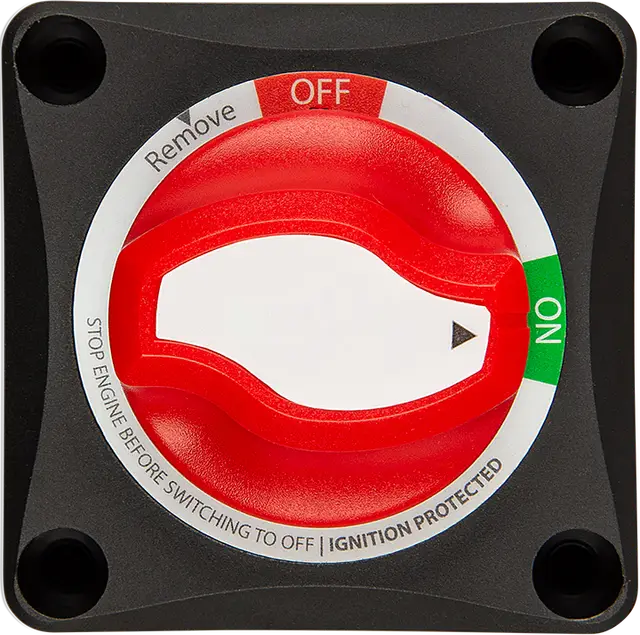

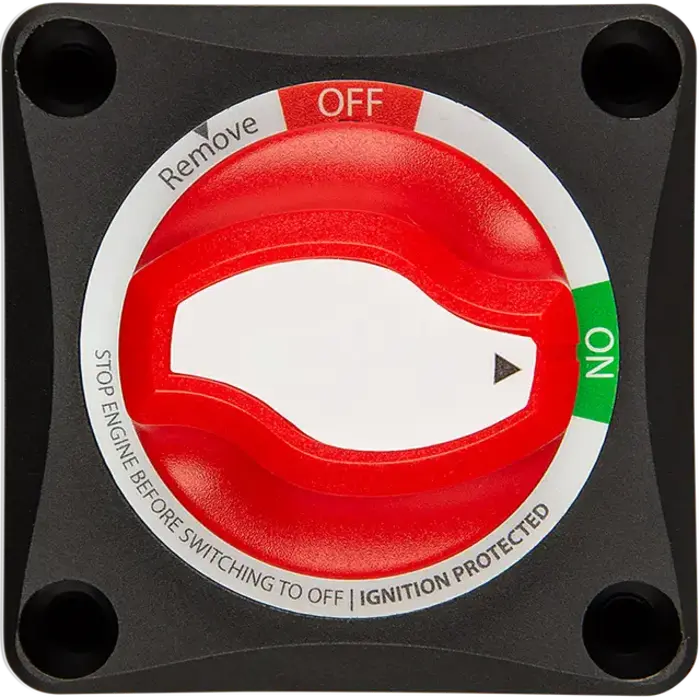

Battery switch
Emergency button
Victron MEGA fuse 5x
Various connection materials
1x Residual current circuit breaker 20A/30mA
Connection cable 3x4mm2

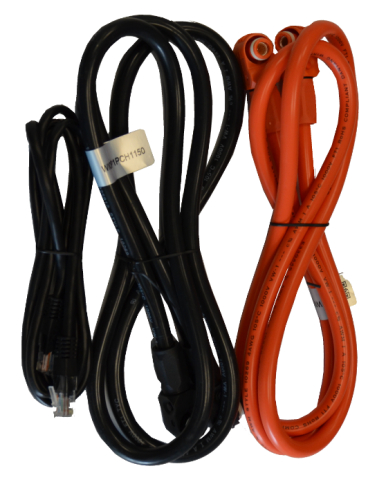

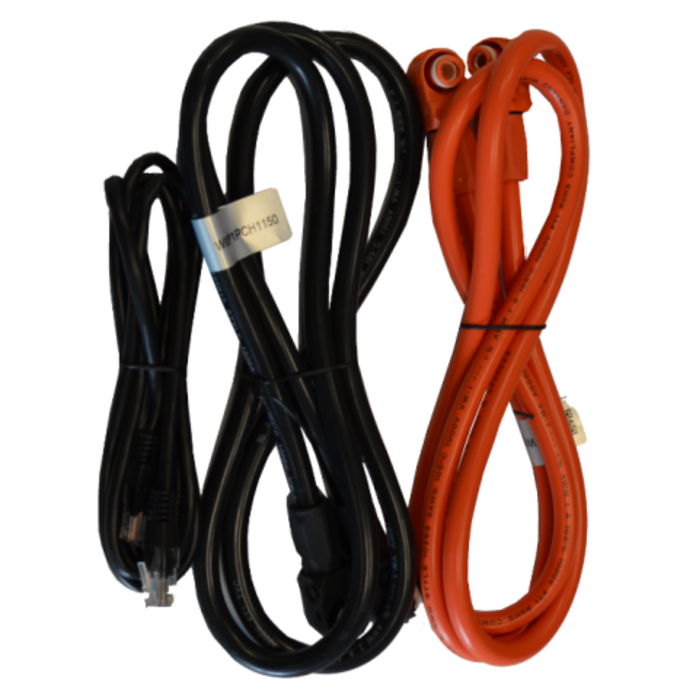

Battery connection cable 70mm2
Standard installation *

Victron Multiplus II 5000VA

The Victron MultiPlus-II is the new inverter/charger combination from 48V to 230V. This device is specifically developed for energy storage systems (ESS) and features a continuous output of 5,000 VA (4,000 Watts) and an integrated 48V - 70A battery charger.

This MultiPlus-II inverter/charger combination features all the functions of the MultiPlus and the MultiGrid, including integrated islanding protection, plus an option for an external current transformer to implement PowerControl and PowerAssist and optimize self-consumption with external current detection (max. 50A).

The Victron MultiPlus-II 48/5000/70-50

This new inverter/charger combination from Victron Energy is specifically designed for off-grid or grid-connected PV installations and alternative energy sources. The MultiPlus-II combines a powerful 5000 VA (4000 Watt) pure sine wave inverter, an advanced battery charger with 70 amp adaptive charging technology, and a fast AC switch in one compact housing. The MultiPlus-II is VDE and TOR D4 certified.

Power Assist
The MultiPlus-II prevents overloading of a limited AC source, such as a generator or shore power connection. First, the battery charge is automatically reduced to prevent overloading. Subsequently, the charge is increased by using power from the battery, the generator, or shore power.

ESS: Energy Storage Systems
The MultiPlus-II is the key component of the Victron ESS (energy storage system), which enables flexible combination with MPPT solar chargers or grid-connected PV inverters.

UPS function (Uninterruptible AC Power) (OPTION not connected by default, additional cost)

In the event of a power outage or if the shore power or generator fails, the inverter in the MultiPlus-II is automatically activated and takes over the power supply to the connected devices. This happens so quickly (within 20 milliseconds) that computers and other electronics can continue to function uninterrupted. Remote monitoring and operation
You can monitor and operate your Multi and system(s) from anywhere in the world. This can be done both locally (LAN) and remotely using the free VRM app and the VRM portal website. This is possible via a smartphone, tablet, laptop, or PC with various operating systems. With the required Color Control GX or Venus GX, the control possibilities are unlimited, from adjusting the Multi to automatically starting the emergency power generator and more…

Dyness Powerbox G2 10.24kWh

The new generation of Dyness Powerbox G2 lithium solar battery modules offers greater energy storage capacity in less space. The Dyness Powerbox G2 has a storage capacity of 10.24 kWh at 51.2 V and is ideal for replacing old and heavy lead-acid batteries. It uses LFP (Lithium-Iron-Phosphate) technology for maximum safety and a longer lifespan. Multiple Dyness Powerbox G2 batteries can be connected in parallel for a maximum of 512 kWh or 50 modules, allowing us to expand the storage capacity based on the needs of our photovoltaic installation.

Each Dyness Powerbox Pro battery contains an intelligent battery management system (BMS) that efficiently manages the module without the need for additional communication devices. This LiFePO4 battery is ideal for a wide range of renewable applications, features a compact, modular design, and is compatible with major inverter brands.

The Dyness Powerbox G2 low-voltage (LV) lithium solar battery with a storage capacity of 10.24 kWh is designed based on LiFePO4 (Lithium-Iron-Phosphate) cells. Featuring very high performance, high safety, and a long service life (unlimited discharge cycles), it has a very compact design, high usable capacity, and a modular design. Each Powerbox G2 solar battery module has an independent BMS to regulate battery charging and discharging as needed. Smart operation and maintenance

The Dyness app offers real-time monitoring of system operation and battery status, enabling intelligent optimization of system operations such as charge status. The built-in Wi-Fi module and hidden antenna on top of the battery make data monitoring more accurate and provide precise monitoring in the cloud.

Benefits of the Dyness Powerbox G2 storage system
The Dyness Powerbox G2 solar battery features an integrated battery management module (BMS) to reduce initial investment costs
