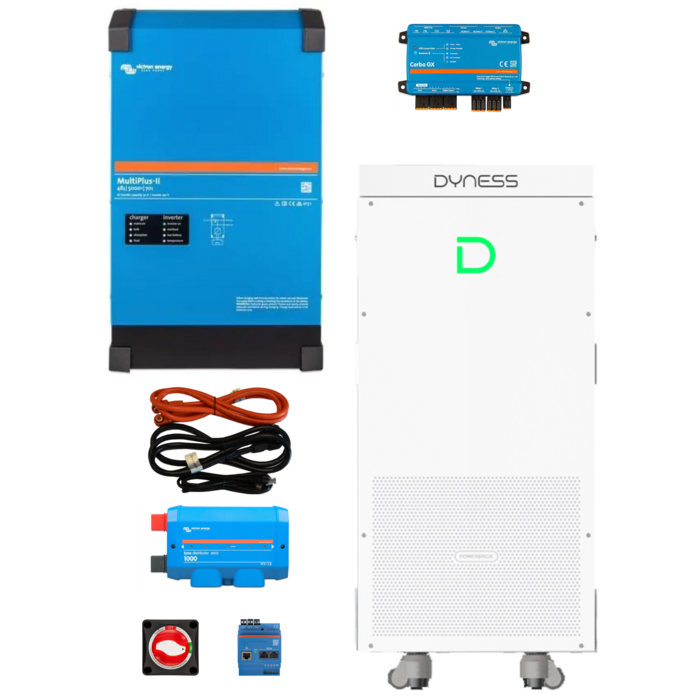

Victron Multiplus II 5000VA Home Battery with 1x Dyness 14.3KWH with standard installation

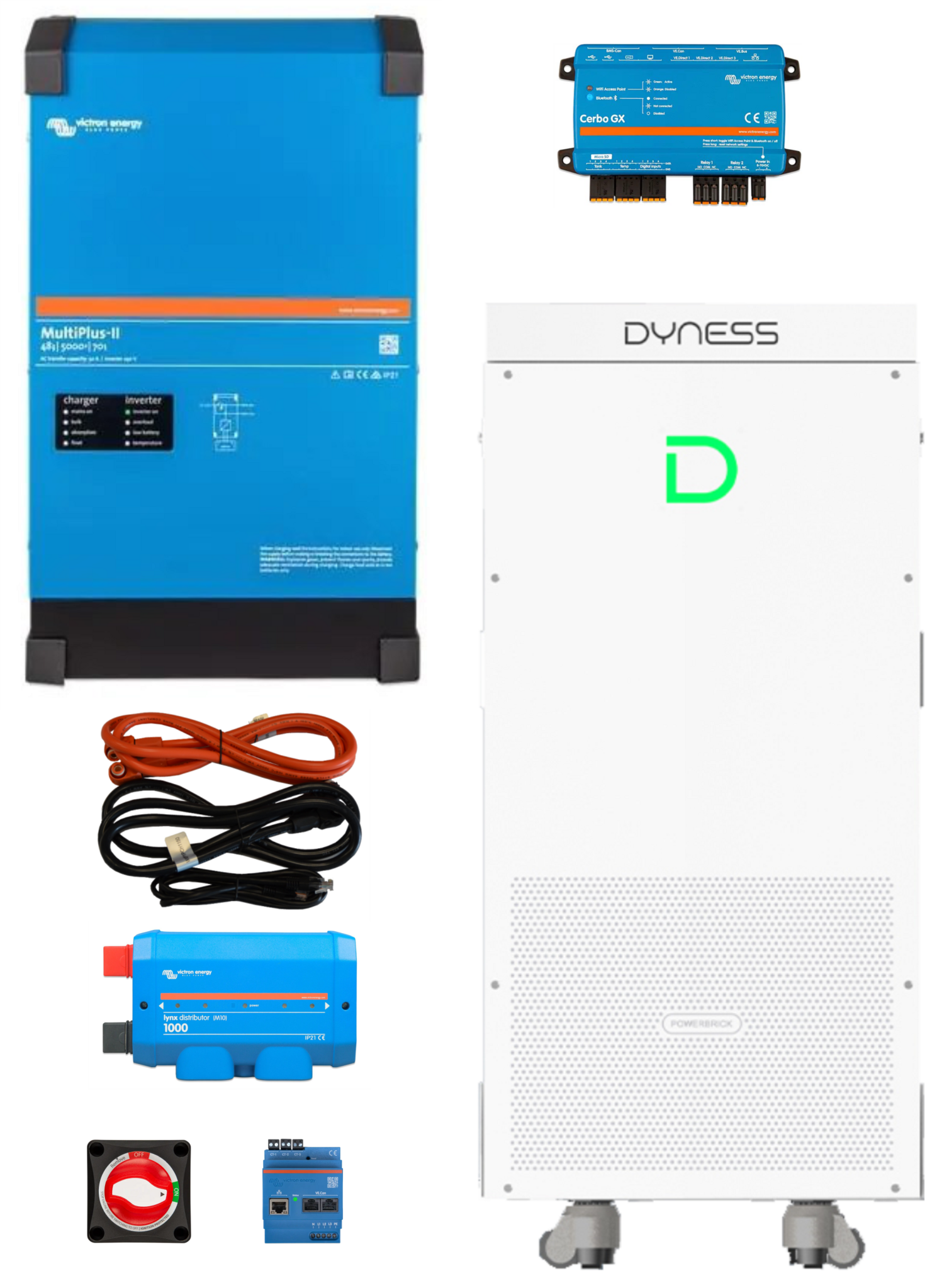

This package contains:



Victron Multiplus II 5000VA

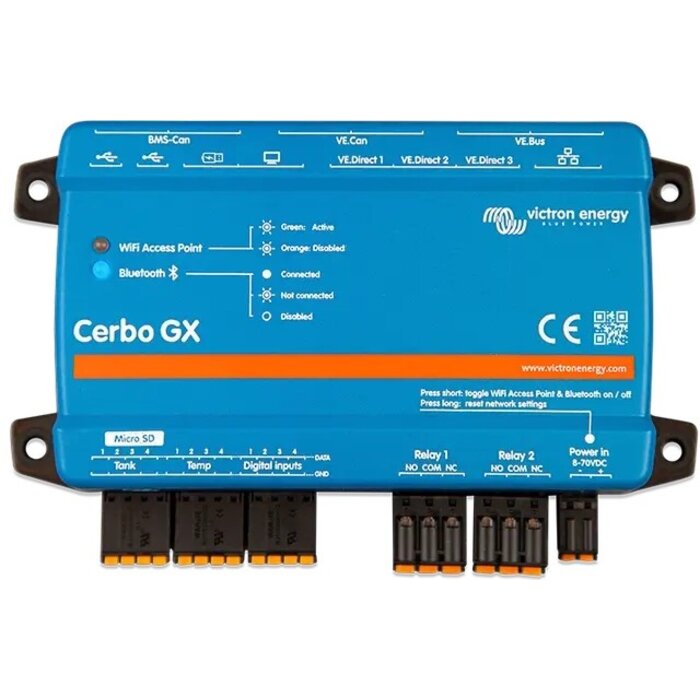

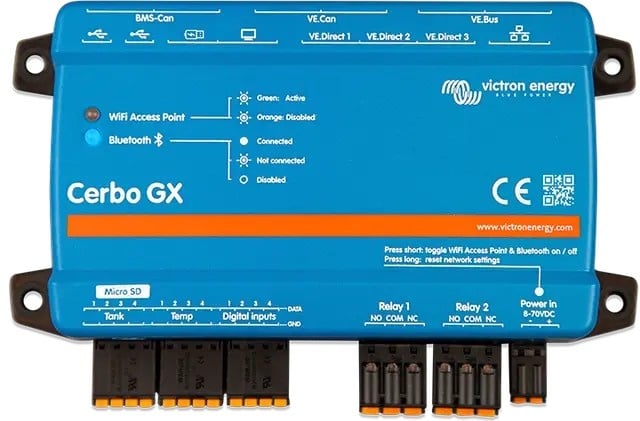

Victron Cerbo GX MK2 (communication module)

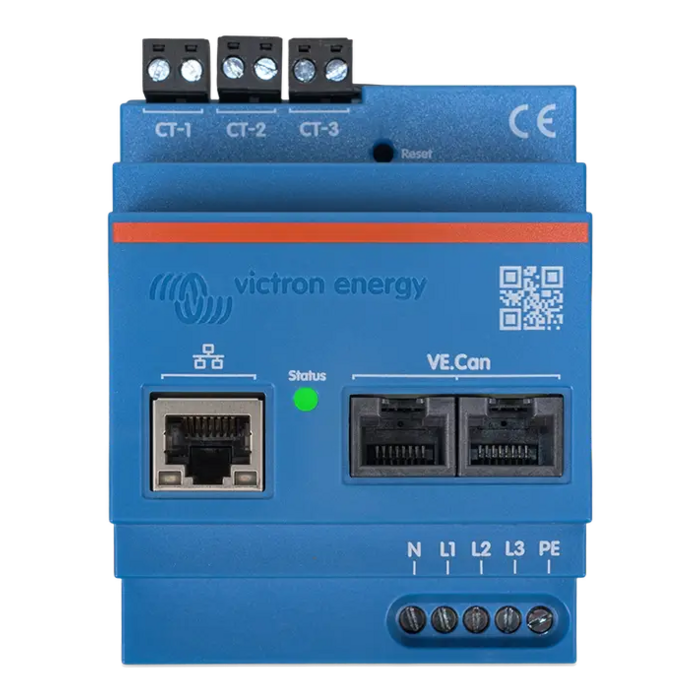

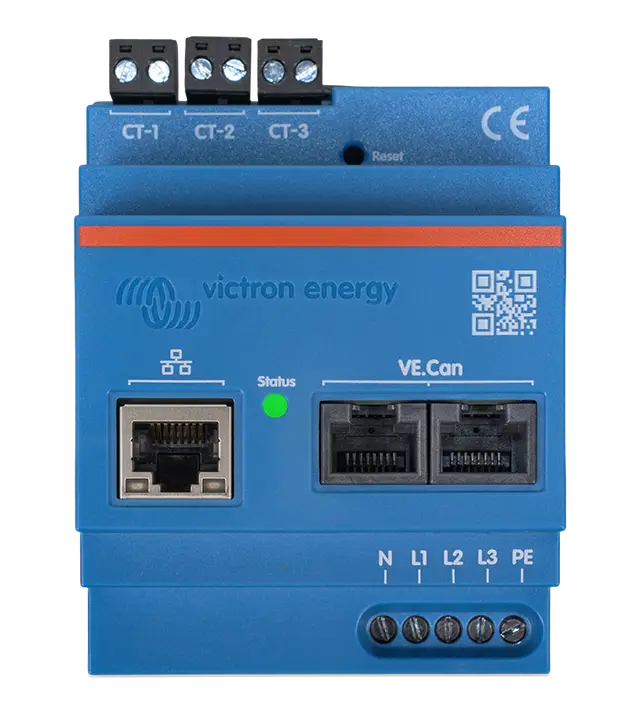

Victron three-phase energy meter (VM-3P75CT)

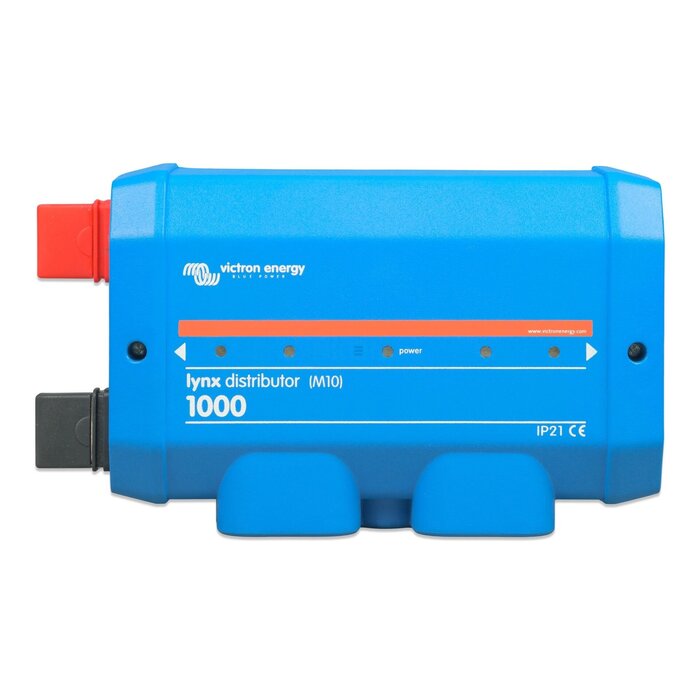

Victron Lynx Distributor (Distribution unit for battery and Multiplus cabling)

Dyness 14.3KWH Battery

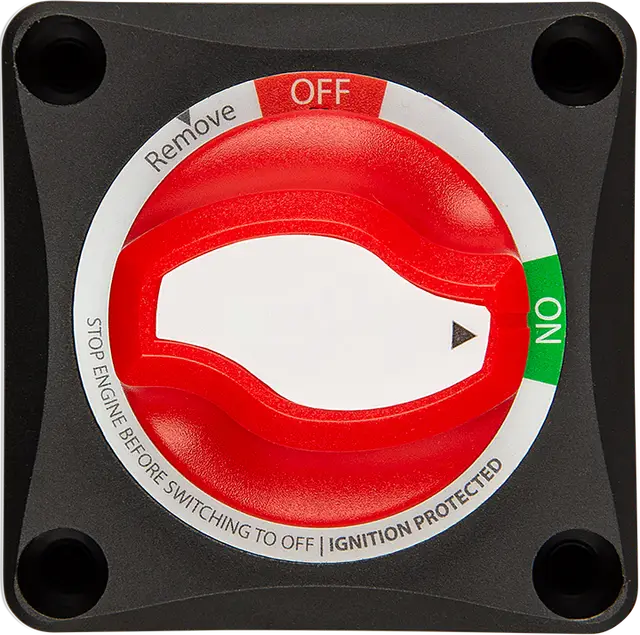

Battery switch

Victron MEGA fuse 5x

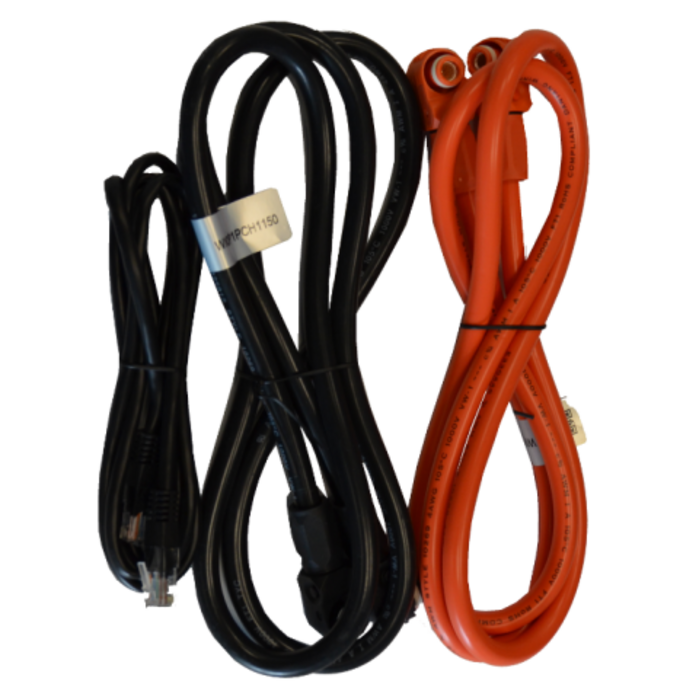

Various connection materials

Residual current circuit breaker B20 30mA

Connection cable 3x4mm 5 meters

Standard installation *



Victron Multiplus II 5000VA



The Victron MultiPlus-II is the new 48V to 230V inverter/charger combination. This device has been specially developed for energy storage systems (ESS) and features a continuous output of 5,000 VA (4,000 Watts) and an integrated 48V - 70A battery charger. This MultiPlus-II inverter/charger combination features all the functions of the MultiPlus and the MultiGrid, including integrated island protection, plus an option for an external current transformer to implement PowerControl and PowerAssist and optimize self-consumption with external current detection (max. 50A).



The Victron MultiPlus-II 48/5000/70-50



This new inverter/charger combination from Victron Energy is specifically designed for off-grid or grid-connected PV installations and alternative energy sources. The MultiPlus-II combines a powerful 5000 VA (4000 Watt) pure sine wave inverter, an advanced battery charger with 70 amp adaptive charging technology, and a fast AC transfer switch in one compact housing. The MultiPlus-II is VDE and TOR D4 certified.



Power Assist

The MultiPlus-II prevents overloading of a limited AC source, such as a generator or shore power connection. First, the battery charge is automatically reduced to prevent overloading. Subsequently, the charge is increased by using power from the battery, the generator, or shore power.



ESS: Energy Storage Systems

The MultiPlus-II is the key component of the Victron ESS (energy storage system), which enables flexible combination with MPPT solar chargers or grid-connected PV inverters.



UPS function (Uninterruptible AC Power) (OPTION not connected, additional cost)

In the event of a power outage or if the shore power or generator fails, the inverter in the MultiPlus-II is automatically activated and takes over the power supply to the connected devices. This happens so quickly (within 20 milliseconds) that computers and other electronics can continue to function uninterrupted.



Remote monitoring and operation

You can monitor and operate your Multi and system(s) from anywhere in the world. This can be done both locally (LAN) and remotely using the free VRM app and the VRM portal website. This is possible via a smartphone, tablet, laptop, or PC with various operating systems. With the required Color Control GX or Venus GX, the operating possibilities are unlimited, from adjusting the Multi to automatically starting the emergency power generator and more…

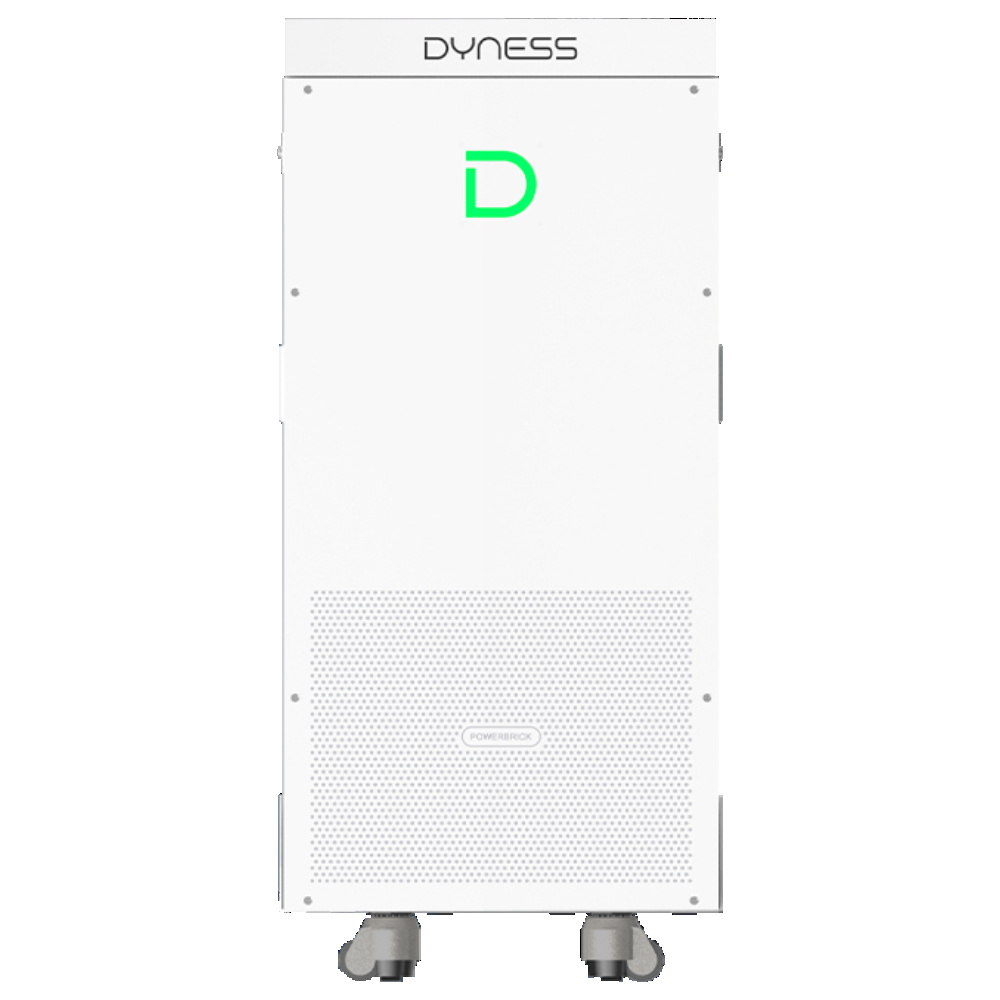

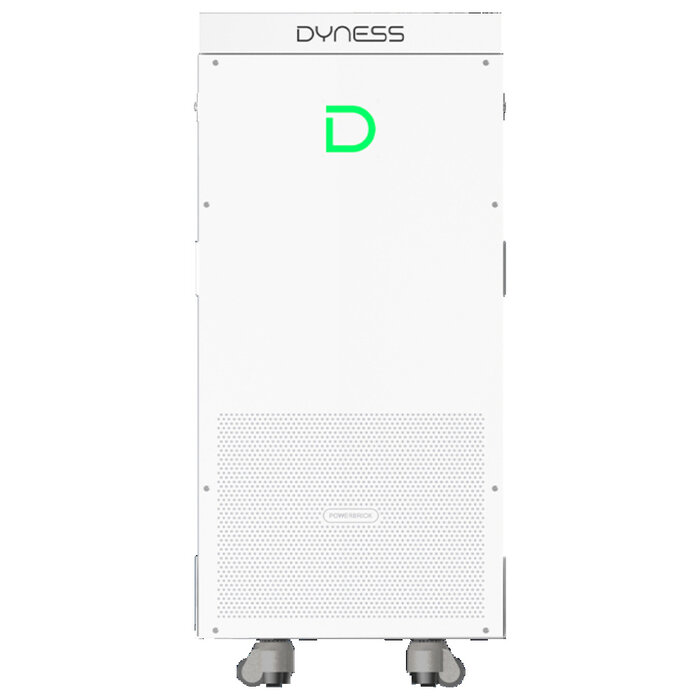

Dyness PowerBrick PRO IP65 14,336 kWh 51.2 V low-voltage LiFePO₄ battery



The Dyness PowerBrick Pro is a low-voltage (48V grade) LiFePO₄ energy storage battery for residential applications. Thanks to IP65 protection, installation is possible indoors or outdoors. The system is expandable up to 50 units in parallel, allowing you to scale up from 14.3 kWh to 716.8 kWh for larger homes or small-scale commercial applications.



Long lifespan: ≥8000 cycles (according to datasheet conditions) and 10-year warranty.



For more information and specifications of the Victron Multiplus II/48V/5000VA click here. Grid meter for attempting to achieve a 0 reading on the meter; only charge if prices are low via the Victron ESS system; Dynamic Energy contract required.



Distribution unit for battery and inverter.



Standard installation on the ground floor (expansion or modification of the meter cabinet is not included in this price).

This is a price indication; the final price will be determined after an on-site visit. The cost for this visit is 100.00* up to 100 KM from Lisse. If the installation proceeds, this amount will be deducted, or the complete installation will be charged.



Why do we charge 100.00 for an on-site visit? We would like to visit you to get a good impression of the situation on site and to be able to provide a serious cost estimate. We need 2 to 4 hours to prepare a quotation and visit the location. Hence these costs, which will be deducted upon order placement.



Installation timeframe is normally 2 to 4 weeks. Option:



Connecting solar panels for meter delivery and zero on the meter, depending on the inverter type; price indication after on-site visit.



Extra Dyness 14.3 kWh Battery: price on request, up to a maximum of 3 in this configuration. More possible after expanding the distribution unit.



Inverter noise:



Please note that at high power outputs, the Victron Multiplus II 5000VA produces a lot of noise, so the location of the inverter is very important. E.g., garage or storage room.



A quieter Victron inverter is also possible; additional cost approximately Euro 1,000.00.
