Victron RS Smart Solar Home Battery 48V/6000VA/230V with 1x Dyness 14.3KWH with standard installation

Victron RS Smart Solar Home Battery 48V/6000VA/230V with 1x Dyness 14.3KWH with standard installation *

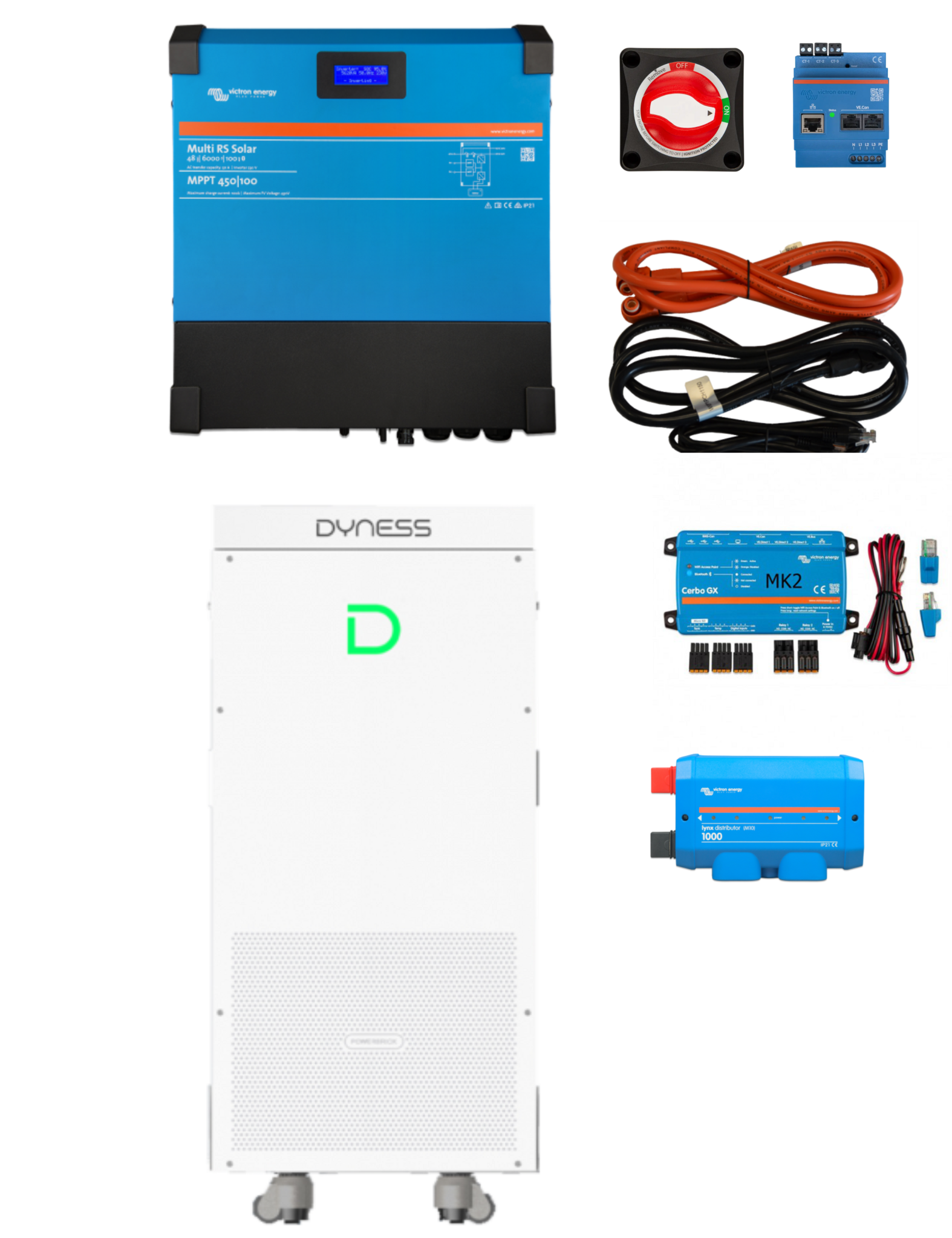

This package contains:



Victron RS Smart Solar 48V/6000VA/230V 1-phase

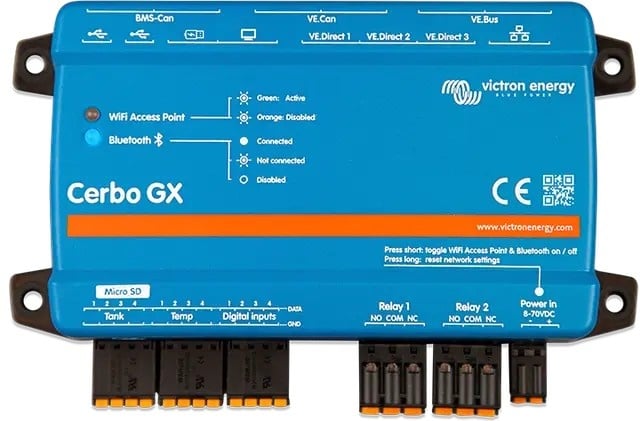

Victron Cerbo GX MK2 (communication module)

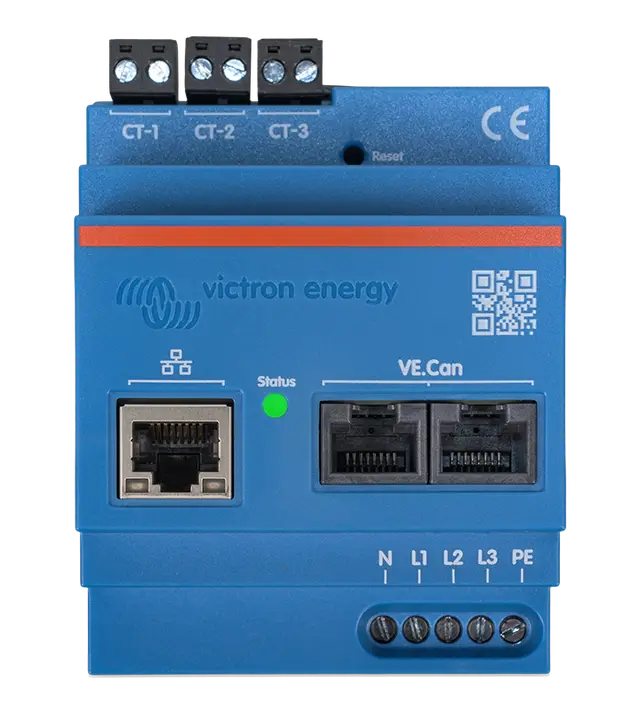

Victron three-phase energy meter (VM-3P75CT)

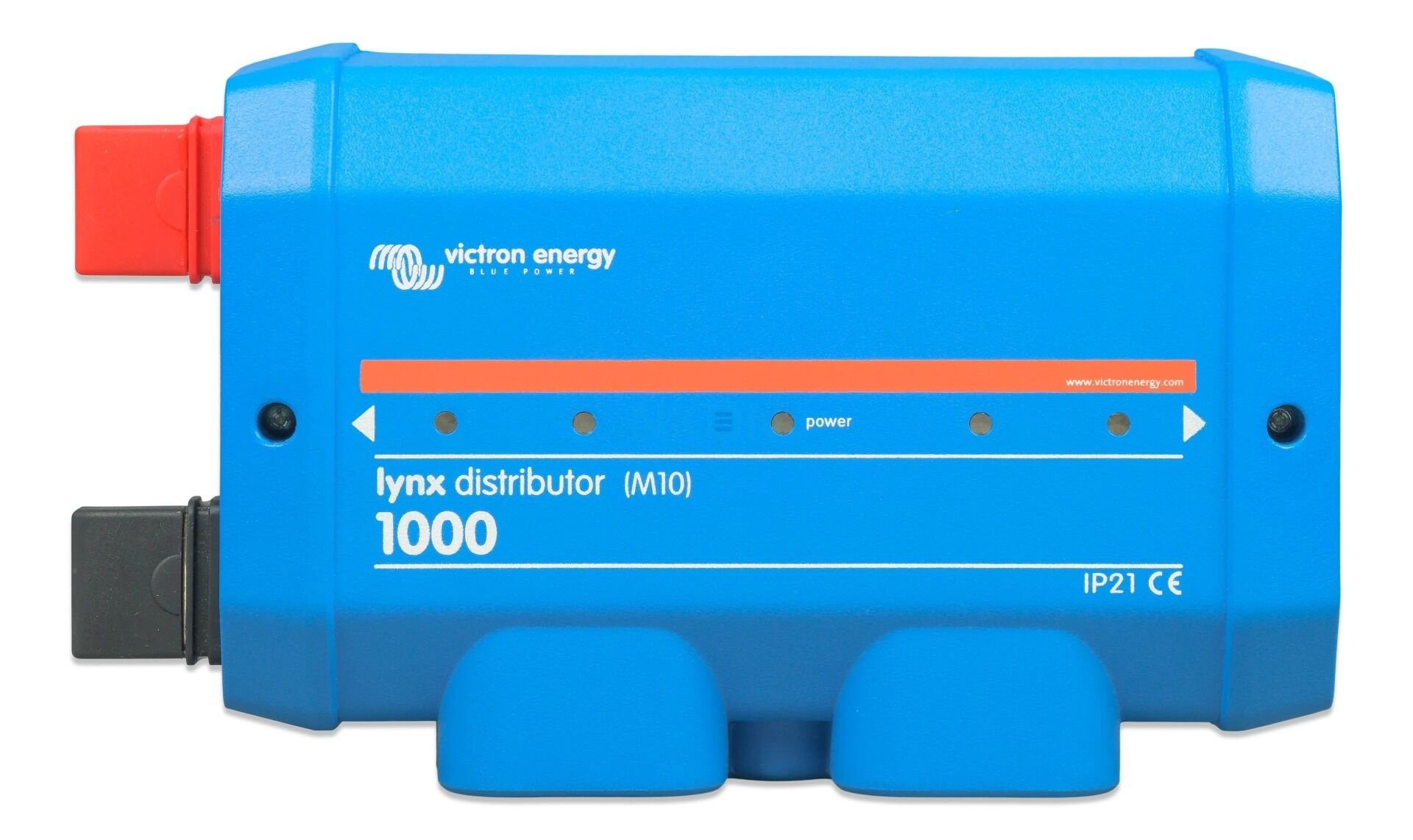

Victron Lynx Distributor (Distribution unit for battery and Multiplus cabling)

Dyness 14.3KWH Battery

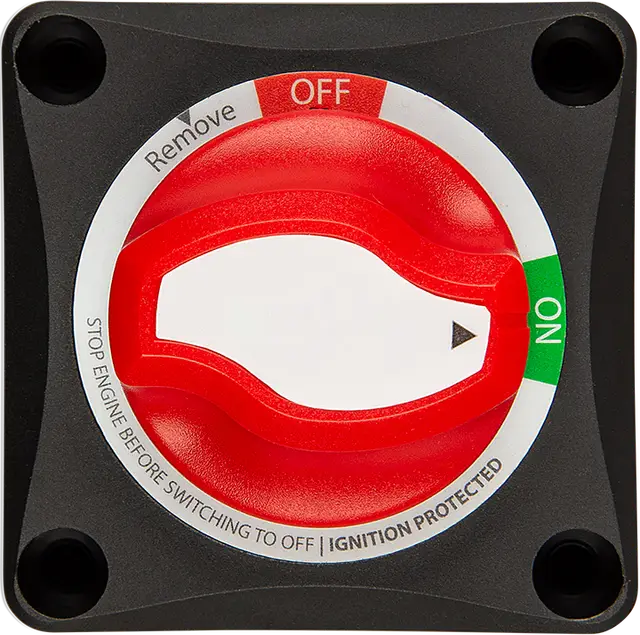

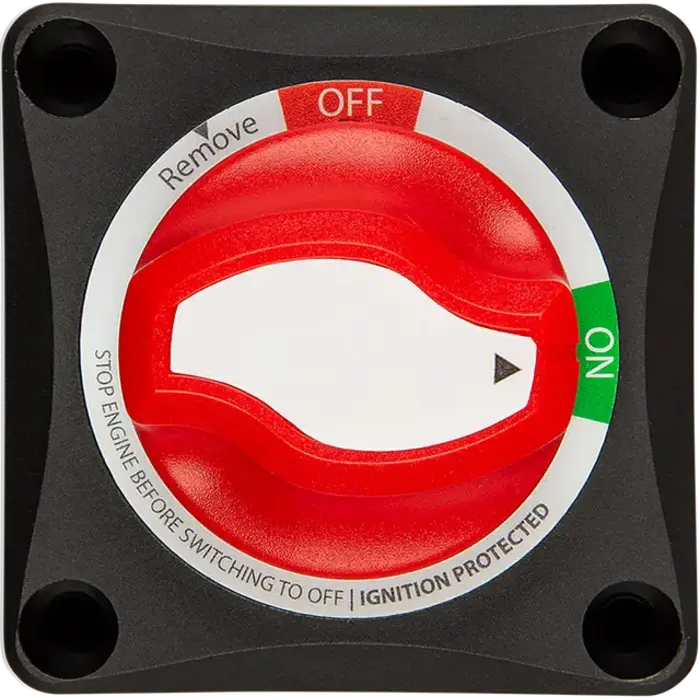

Battery switch

Victron MEGA fuse 5x

Various connection materials

1x Residual current circuit breaker 20A/30mA

Connection cable 3x4mm2

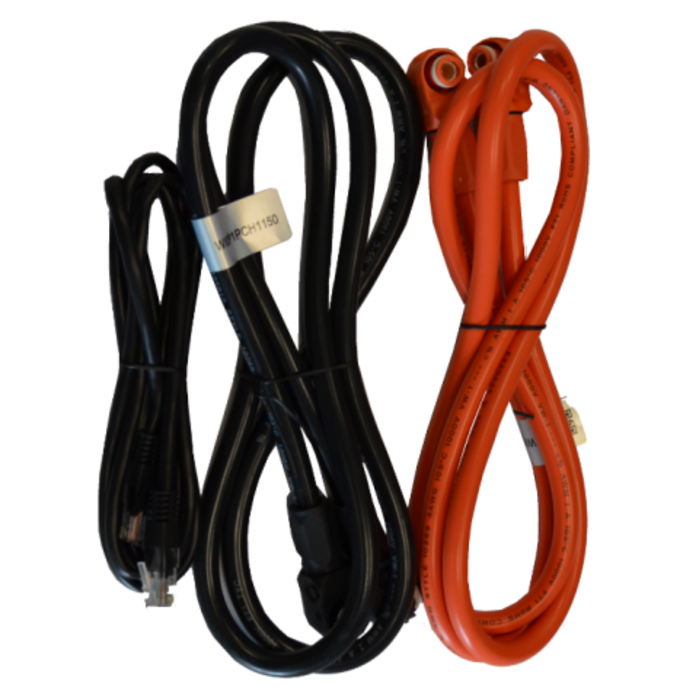

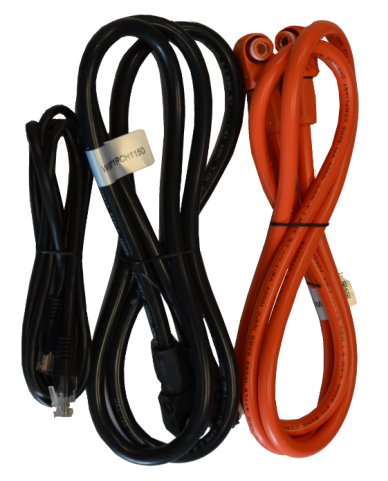

Battery connection cable 70mm2

Standard installation *

Victron RS Smart Solar 48V/6000VA/230V



ictron Inverter RS ​​48/6000 230V Smart Solar - Off-Grid Solar Inverter



The RS 48/6000 Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a 4kW high-voltage MPPT solar charger (80-450VDC). Thanks to its modern design with high-frequency technology, this solar inverter features excellent efficiency, low no-load power, very quiet operation, and a weight of only 11 kg. The inverter is equipped with a monitor display to read battery, inverter, and solar charger data. This data can also be read via Bluetooth using the VictronConnect App. Additionally, the inverter features a VE.Direct and a VE.Can port for communication with a GX remote control for system monitoring.



Victron Inverter RS ​​48/6000 230V Smart Solar is a 48V 6 kVA solar inverter with 450V/4000W PV input. The device is specifically intended for self-sufficient solar applications where AC power supply is required.



Combination of an inverter, bi-directional DC-DC converter, and MPPT

The inverter produces a perfect sine wave, capable of powering high-power devices. It is powered by a bi-directional DC-DC converter, which can either charge the battery when excess solar energy is available or convert power from the battery when needed.



Wide range MPPT supply voltage

80 – 450 VDC, with a 120 VDC PV start-up supply voltage.



Lightweight, efficient, and quiet

Thanks to high-frequency technology and a new design, this powerful inverter weighs only 11 kg. Furthermore, it features excellent efficiency, low standby power, and very quiet operation.



Display and Bluetooth

The display reads battery, inverter, and solar charge controller parameters. The same parameters can be accessed using a smartphone or another device with Bluetooth enabled. Additionally, Bluetooth can be used to set up the system and change settings using VictronConnect.



VE.Can and VE.Direct port



For connection to a GX device for remote system monitoring, data logging, and firmware updates.



Built-in PV isolator

Both parallel PV strings, connected via MC4 plugs, can be safely isolated using the large built-in switch on the underside of the unit.



I/O connections

Programmable relay, temperature sensor, and supply voltage sensor connections. The remote input can also be configured to accept the Victron miniBMS.

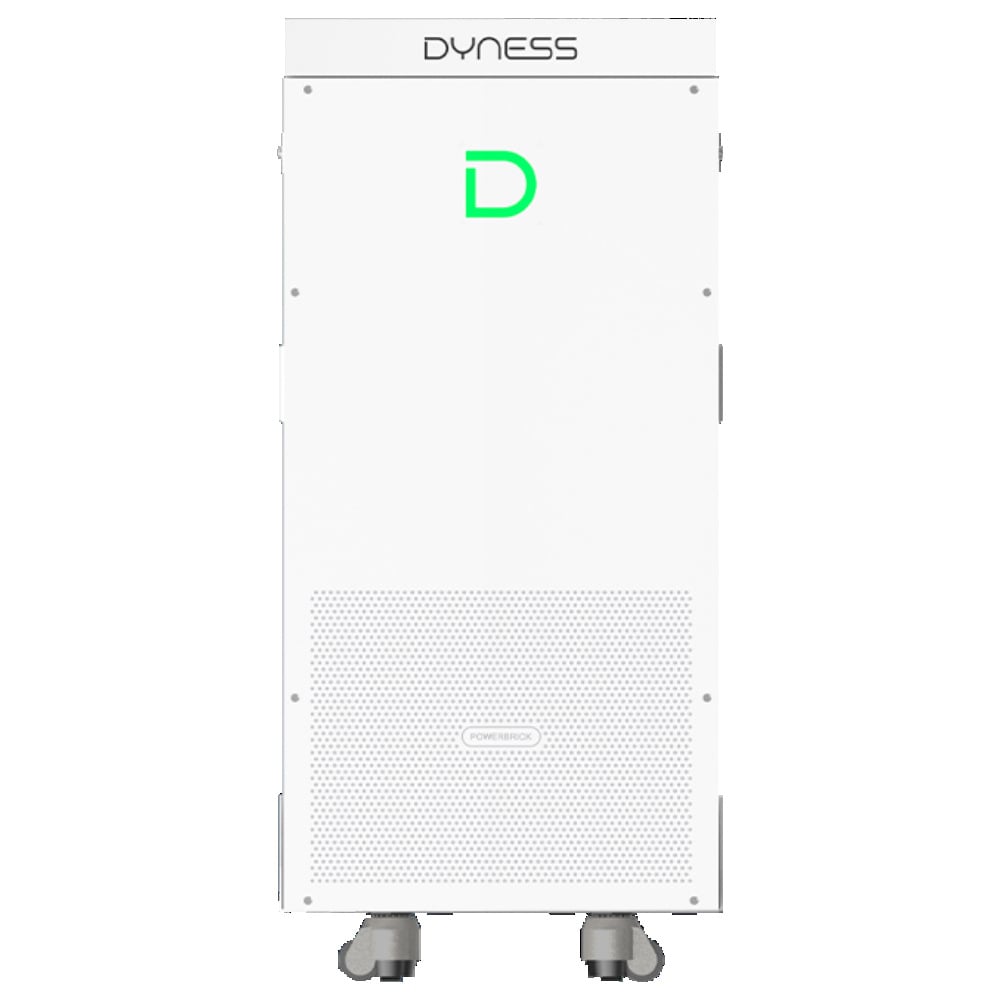

Dyness PowerBrick PRO IP65 14,336 kWh 51.2 V low-voltage LiFePO₄ battery



The Dyness PowerBrick Pro is a low-voltage (48V grade) LiFePO₄ energy storage battery for residential applications. Thanks to IP65 protection, installation is possible indoors or outdoors. The system is expandable to 50 units in parallel, allowing you to scale up from 14.3 kWh to 716.8 kWh for larger homes or small-scale commercial applications.



Long lifespan: ≥8000 cycles (according to datasheet conditions) and 10-year warranty.



Grid meter for attempting to achieve a 0 reading on the meter; charging only when prices are low via the Victron ESS system; Dynamic Energy contract required.

Distribution unit for battery and inverter.



Standard ground floor installation (expansion or modification of meter cabinet is not included in this price).

This is a price indication; the final price will be determined after an on-site visit. We charge €100.00* for this visit up to 100 KM from Lisse. If the installation proceeds, this amount will be deducted or the price will be for the complete installation. Why do we charge 100.00 for an on-site visit? We would like to visit you to get a good impression of the situation on-site and to be able to provide a serious cost estimate. We need 2 to 4 hours to prepare a quotation and visit the location. Hence these costs, which will be deducted upon order placement.



Installation timeframe is normally 2 to 4 weeks.



Option:



Connecting solar panels for meter delivery and zero on the meter; depending on the type of inverter, price indication after on-site visit.

Extra Dyness 14.3 kWh Battery: price on request, up to a maximum of 3 in this configuration. More possible after expanding the distribution unit.
